Loudspeaker

Loudspeaker YD200-06A-8F70P 8 Inch High Quality Bass Speaker, Best Buy Subwoofer

  • Model YD200-06A-8F70PDiameter:Φ205mmCone Material:PaperEdge:PaperNominal Power:10wMaximum Power:15wImpedance:815%ΩVoice coil:Φ25.9mmFo:8020%HzResponse:Fo-15kHz

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD200-06A-8F70P
  • Diameter: Φ205mm
  • PDF
  • Description
  • Order

Product Description

2

                         Model                 YD200-06A-8F70P

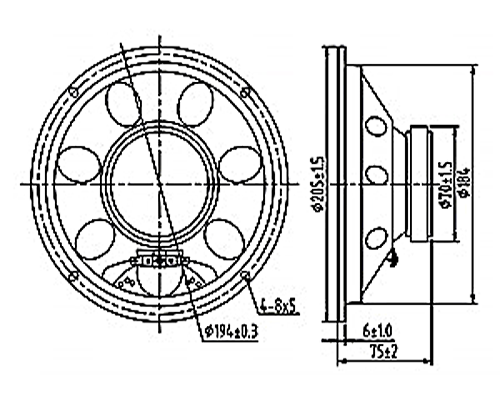

Diameter:

Φ205mm

Cone Material:

Paper

Edge:

Paper

Nominal Power:

10w

Maximum Power:

15w

Impedance:

8±15%Ω

Voice coil:

Φ25.9mm

Fo:

80±20%Hz

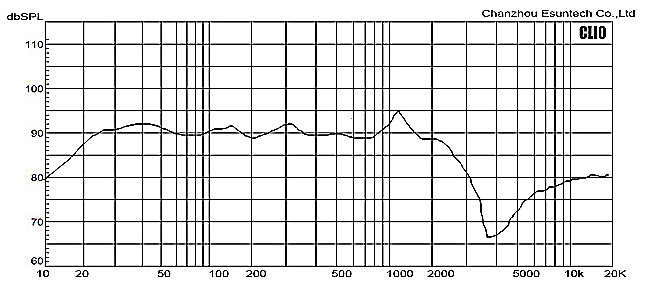

Response:

Fo-15kHz

S.P.L:

89±3dB/W/M

Magnet Size:

Φ70×32×10(Ferrite)

Net weight:

558g

3
