Loudspeaker

Loudspeaker 50mm YD50-01-45F32M-R 45 ohm Waterproof Speaker Drivers

  • Loudspeaker 50mm YD50-01-45F32M-R 45 OHM Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co LtdModelYD50-01-45F32M-RDimension:Φ50*16H mmCone Material:PETEdge: PaperNominal Power:0.5WMaximum P

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD50-01-45F32M-R
  • Diameter: Φ50*16H mm
  • PDF
  • Description
  • Order

Product Description


Loudspeaker 50mm YD50-01-45F32M-R 45 OHM Full Range Waterproof Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD50-01-45F32M-R

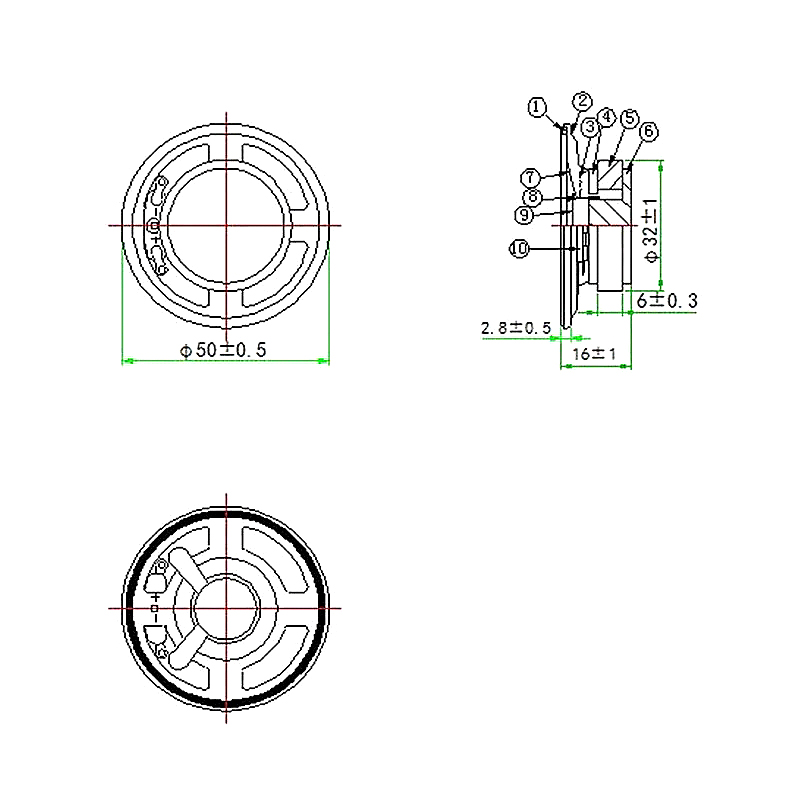

Dimension:Φ50*16H mm
Cone Material:PET
Edge: Paper
Nominal Power:0.5W
Maximum Power:1W
Impedance:45Ω±15%Ω
Voice coil:Φ13.28mm PL+Cu
Fo:700±20%

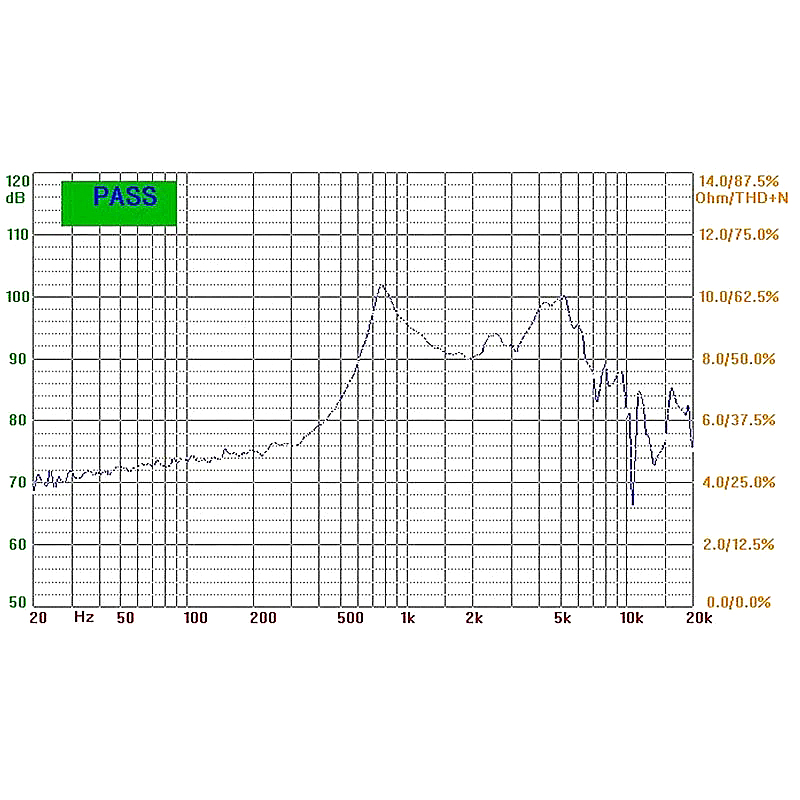

Response:Fo~6KHZ
S.P.L:93±3dB(AT 0.1W/0.1M,Average of 0.6,0.8,1.0,1.2 KHz)
Magnet Size:Φ32*18*6mm
Net weight:45g±8%
