Mini Speaker

mini speaker ESP23N-01 intercom speaker ESP23N-01

  • 23mmx4.5mm mini speaker 600hz 0.5W 2345 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Es

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP23N-01

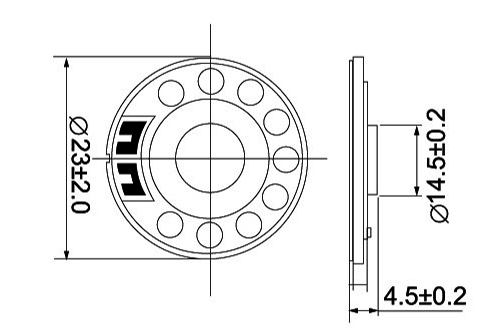

  • Diameter: 23mmx4.5mm
  • PDF
  • Description
  • Order

Product Description

23mmx4.5mm   mini  speaker 600hz 0.5W 2345 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.ESP23N-01
DiaphgrameMylay
FramePlastic
Nominal Power: 0.25W
Maximum Power: 0.5W
Impedance: 4/8/16/32 ohm±15%Ω
Voice coil:
Fo: 600 HZ

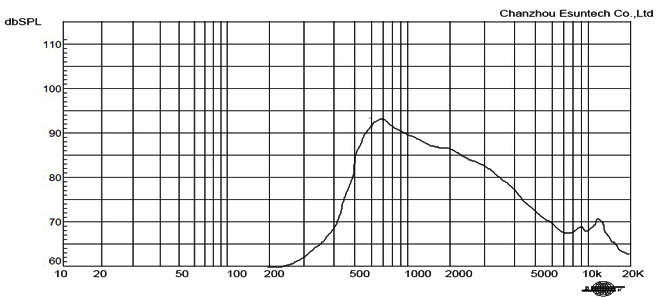

Response: Fo-20kHz
S.P.L87±3dB/0.1W/0.1
Magnet Size: NdFeB
RohsYes

3
