Mini Speaker

mylar speaker ESP27W micro speaker ESP27W-B

  • 27mmx7mm mini speaker 4/8/16/32 ohm 600hz 2707 2770 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP27W-B

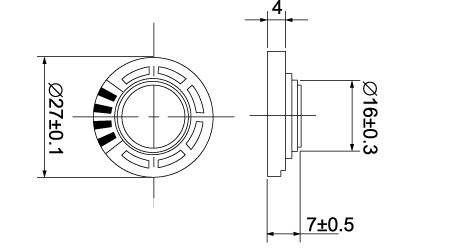

  • Diameter: 27mmx7mm
  • PDF
  • Description
  • Order

Product Description

27mmx7mm   mini  speaker 4/8/16/32 ohm 600hz 2707 2770 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


未标题-2 拷贝

Model No.ESP27W-B
DiaphgrameMylar
FramePlastic
Nominal Power: 0.25W
Maximum Power: 0.5W
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 600 HZ

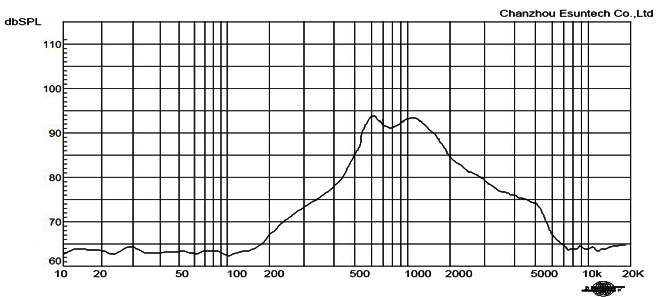

Response: Fo-20kHz
S.P.L85±3dB/0.1W/0.1
Magnet Size:Ferrit
RohsYes
