Mini Speaker

micro speaker ESP18N 18mm miniature speaker ESP18N-01

  • 8mmx4mm mini speaker 1200hz 1840 1804 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,medical,meter and instrument - Changzhou Esuntech

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP18N-01

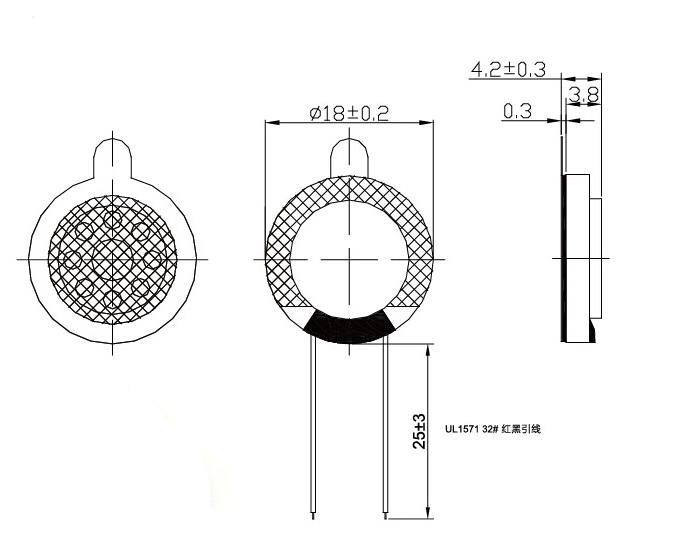

  • Diameter: 18mmx4mm
  • PDF
  • Description
  • Order

Product Description

8mmx4mm   mini  speaker 1200hz 1840 1804 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.ESP18N-01
Cone Material: Mylar
Edge:
Nominal Power: 0.5w
Maximum Power: 1.2w
Impedance: 8 ohm±15%Ω
Fo: 950hz

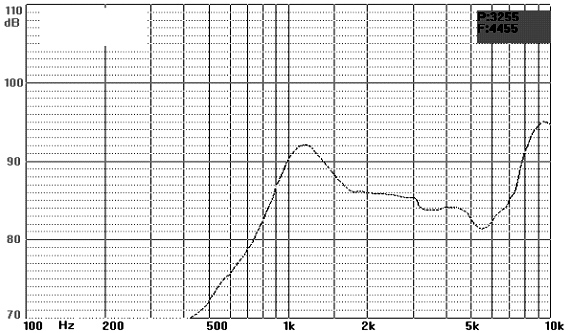

Response: Fo-20kHz
S.P.L:  92±3dB/W/M
Magnet Size: NdFeB
RohsYes
