Mini Speaker

mylar speaker EST15N miniature earphone

  • 15mmx3mm mini speakerwith grid 600hz 1530 1503 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Chang

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST15N-02

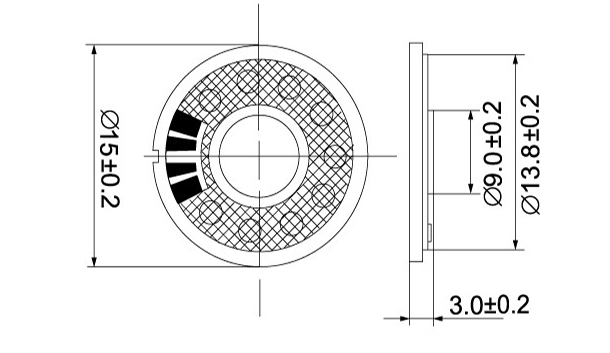

  • Diameter: 5mmx3mm
  • PDF
  • Description
  • Order

Product Description

15mmx3mm   mini  speakerwith grid 600hz 1530 1503 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.EST15N-02
Cone Material: Mylar
Edge:
Nominal Power: 0.5w
Maximum Power: 0.8w
Impedance: 8 ohm±15%Ω
Fo: 600hz

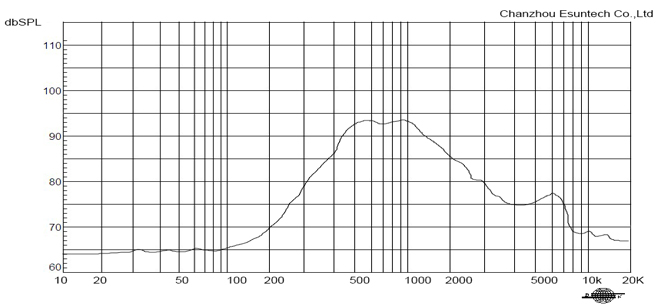

Response: Fo-20kHz
S.P.L:  90±3dB/W/M
Magnet Size: NdFeB
RohsYes

3
