Mini Speaker

mylar speaker ESP27W small speaker

  • 27mmx9mm mini speaker 4/8/16/32 ohm 600hz 2790 2709 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP27W-A

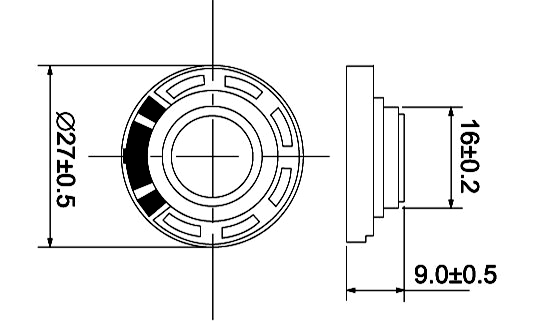

  • Diameter: 27mmx9mm
  • PDF
  • Description
  • Order

Product Description

27mmx9mm   mini  speaker 4/8/16/32 ohm 600hz 2790 2709 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.ESP27W-A
DiaphgrameMylar
FramePlastic
Nominal Power: 0.25W
Maximum Power: 0.5W
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 600 HZ

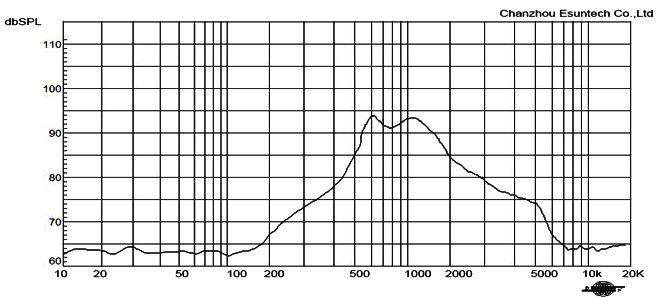

Response:       Fo-20kHz
S.P.L88±3dB/0.1W/0.1
Magnet Ferrit
RohsYes

3


Write A Order

Quick Information

Information

Customer Service

Main Poducts

Buzzer: piezoelectric (piezo) vibration element, piezoelectric buzzer, magnetic buzzer, SMD buzzer Speaker: piezo tweeter, mylar speaker, loudspeaker, tweeter speaker, TV speaker, car speaker, multimedia speaker, woofer, sub-woofer, waterproof speaker etc Ultrasonic sensor: for car parking system or distance tester
