Mini Speaker

mylar speaker ESP28W-01 small speaker 28mm

  • 28mmx7mm mini speaker 4/8/16/32 ohm 5500hz 2807 2870 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP28W-01

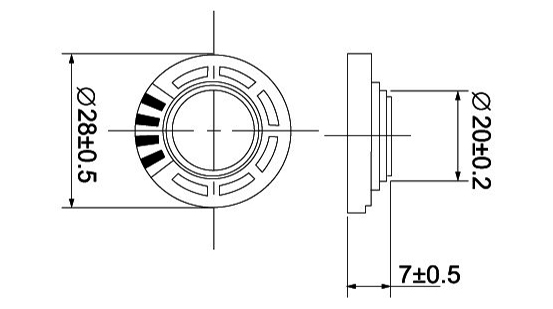

  • Diameter: 28mmx7mm
  • PDF
  • Description
  • Order

Product Description

28mmx7mm   mini  speaker 4/8/16/32 ohm 5500hz 2807 2870 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2 拷贝

Model No.ESP28W-01
DiaphgrameMylar
FramePlastic
Nominal Power: 0.5w
Maximum Power: 1.0w
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 550hz

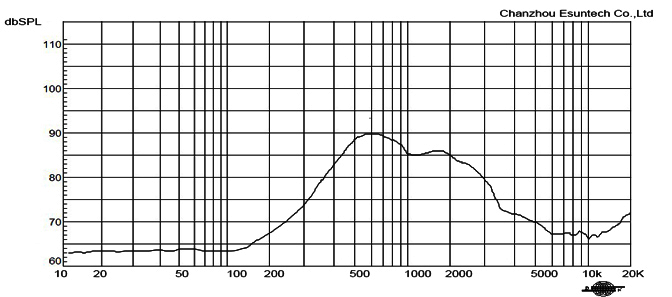

Response: Fo-6kHz
S.P.L:  92±3dB/W/M
Magnet Ferrit
RohsYes
