Mini Speaker

mylar speaker ESP29W 29mmx7mm micro speaker ESP29W-A

  • 29mmx7mm mini speaker 4/8/16/32 ohm 600hz 2907 2970 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP29W-A

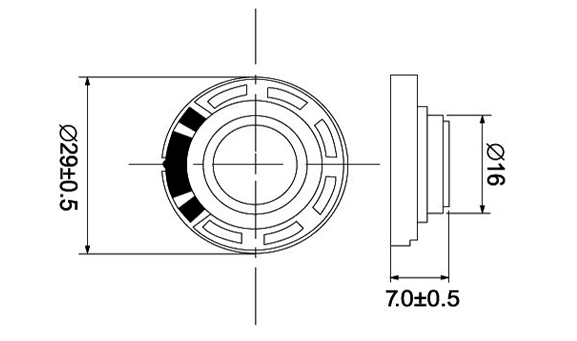

  • Diameter: 29mmx7mm
  • PDF
  • Description
  • Order

Product Description

29mmx7mm   mini  speaker 4/8/16/32 ohm 600hz 2907 2970 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.ESP29W-A
Cone Material: Mylay
Edge: Paper
Nominal Power: 0.25w
Maximum Power: 0.5w
Impedance: 8/16/32 ohm±15%Ω
Fo: 600hz
Response: Fo-6kHz
S.P.L:  90±3dB/W/M
Magnet Size: Ferrit
RohsYes

3
