Mini Speaker

wiring mylar speaker ESP2415 oval micro speaker ESP2415N-A

  • 24mmx15x4mm mini wired speaker 4/8/16/32 ohm 900hz 2907 2970 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,cell phone,earphone,med

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP2415N-A

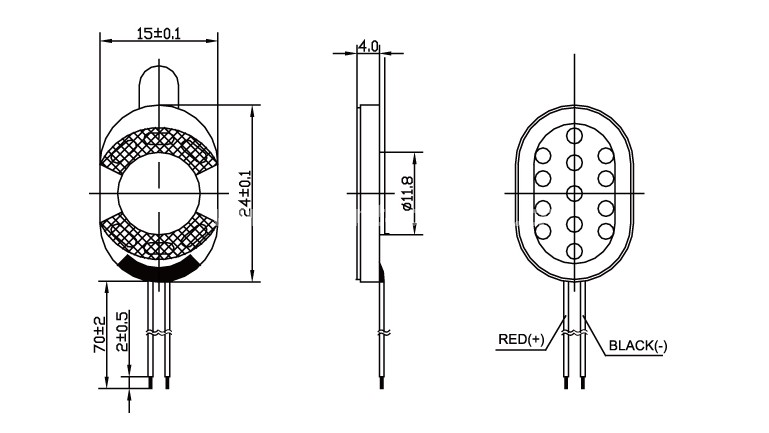

  • Diameter: 24mmx15x4mm
  • PDF
  • Description
  • Order

Product Description

24mmx15x4mm   mini wired speaker 4/8/16/32 ohm 900hz 2907 2970 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


Model No.ESP2415N-A
Cone Material: mylar
Edge:
Nominal Power: 0.8w
Maximum Power: 1.2w
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 900hz

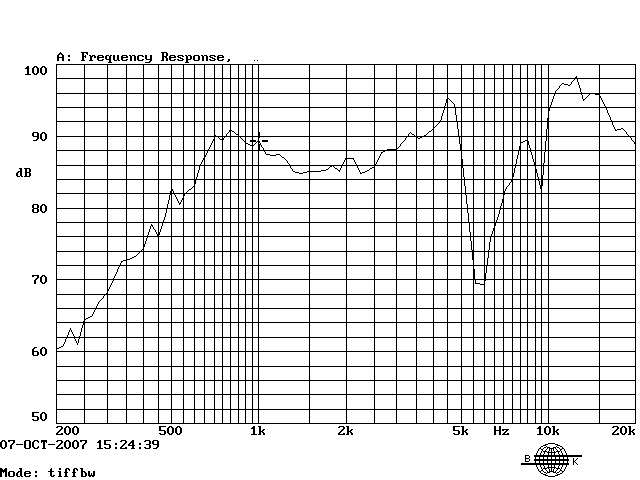

Response: Fo-20kHz
S.P.L:  89±3dB/W/M
Magnet Size: NdFeB7.9*1.2mm
RohsYes
