Mini Speaker

mylar speaker 24mm vibrator speaker EST24N-05

  • 23mmx11.5mm mini vibration speaker 4/8/16/32 ohm 600hz 0.5W 2335 2330 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST24N-05

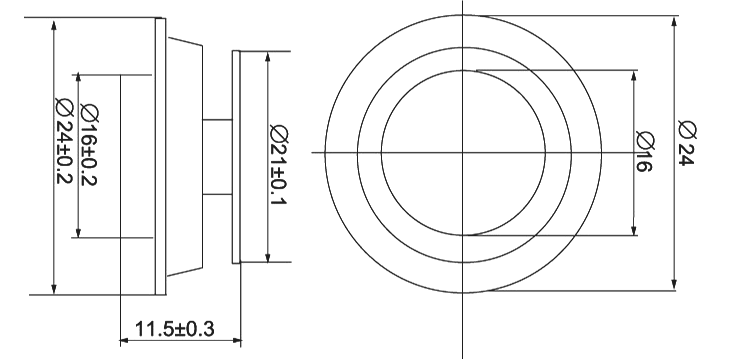

  • Diameter: 23mmx11.5mm
  • PDF
  • Description
  • Order

Product Description

23mmx11.5mm   mini vibration speaker 4/8/16/32 ohm 600hz 0.5W 2335 2330 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EST24N-05
Cone Material:
Edge:
Nominal Power: 1W
Maximum Power: 3W
Impedance: 4±15%Ω
Fo: 650 HZ

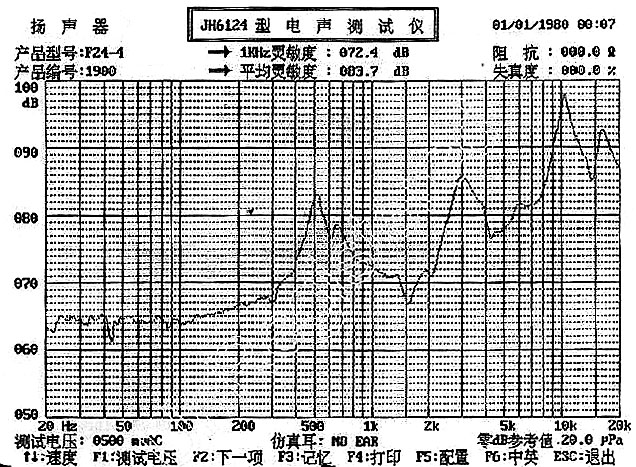

Response: Fo-20kHz
S.P.L:  83±3dB/W/M
Magnet Size: Φ12.5×2H  N35
Φ9.5×1.5H  N35

3
