Mini Speaker

mylar speaker 27mm waterproof speaker EST27N-A

  • 7mmx5mm mini speaker 4/8/16/32 ohm 600hz 0.5W 2750 2705 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phone,earphon

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST27N-A

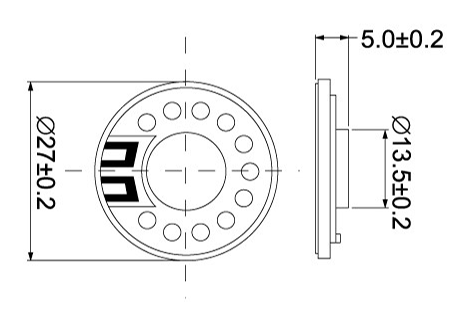

  • Diameter: 27mmx5mm
  • PDF
  • Description
  • Order

Product Description

7mmx5mm   mini  speaker 4/8/16/32 ohm 600hz 0.5W 2750 2705 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EST27N-A
DiaphgrameMylar
FrameSteel
Nominal Power: 0.25W
Maximum Power: 0.5W
Impedance: 4/8/16/32±15%Ω
Fo: 600 HZ
Response: Fo-20kHz
S.P.L85±3dB/0.1W/0.1
Magnet Size NdFeB
RohsYes

3
