Mini Speaker

mylar speaker 28mm peaker with spring-EST28N-A-R

  • 28mmx4mm mini speaker with spring 4/8/16/32/64/120 ohm 600hz 0.5W 2840 2804 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,to

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST28N-A-R

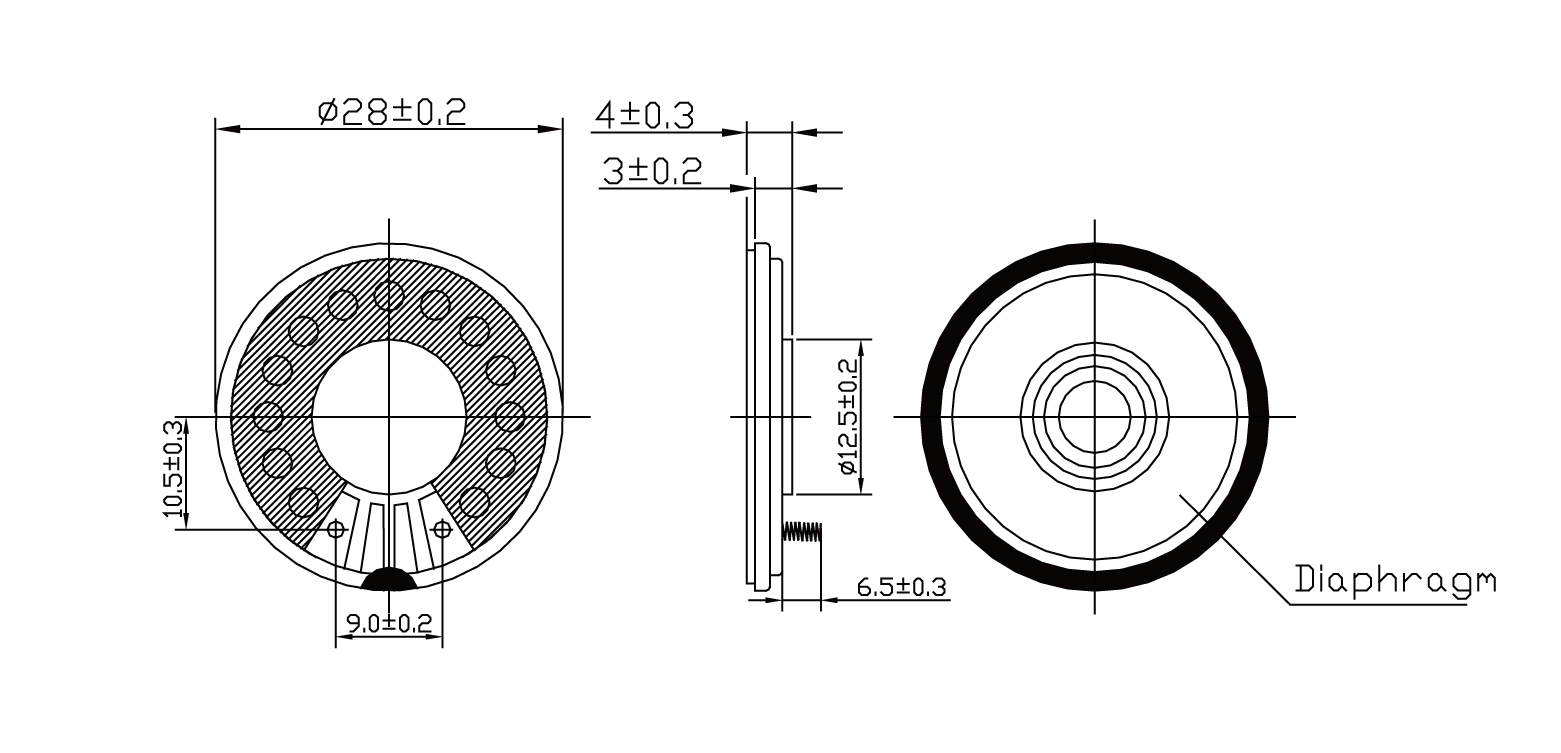

  • Diameter: 28mmx4mm
  • PDF
  • Description
  • Order

Product Description

28mmx4mm   mini  speaker with spring 4/8/16/32/64/120 ohm 600hz 0.5W 2840 2804 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

28040

Model No.EST28N-A-R
Cone Material: Mylay
Edge:  Paper
Nominal Power: 1.0w
Maximum Power: 2.0w
Impedance:    8/16/32/64/120 ±15%Ω
Fo: 550hz

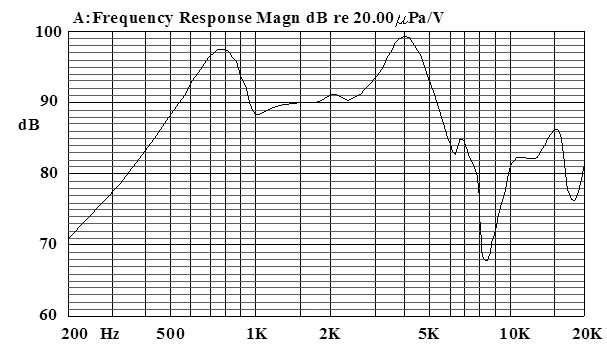

Response: Fo-6kHz
S.P.L:   92±3dB/W/M
Magnet Size: 9.5*1.0
RohsYes
