Mini Speaker

mylar speaker 28mm min speaker EST28-B

  • 28mmx5mm mini speaker 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phon

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST28N-B

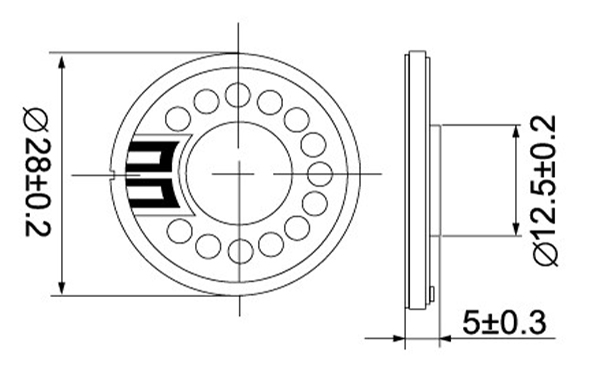

  • Diameter: 28mmx5mm
  • PDF
  • Description
  • Order

Product Description

28mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2 拷贝

Model No.EST28N-B
Cone Material: Mylay
Edge: Paper
Nominal Power: 1.0w
Maximum Power: 2.0w
Impedance: 4/8/16/32/64/120±15%Ω
Fo: 550hz

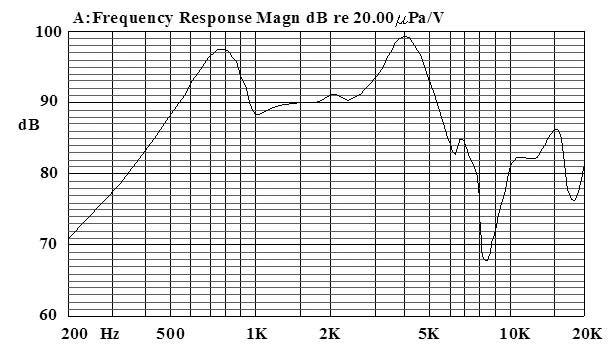

Response: Fo-6kHz
S.P.L:  92±3dB/W/M
Magnet Size: 9.5*1.0
RohsYes
