Mini Speaker

mylar speaker 28mm micro speaker EST28N-C

  • 28mmx5mm mini speaker 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phon

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST28N-C

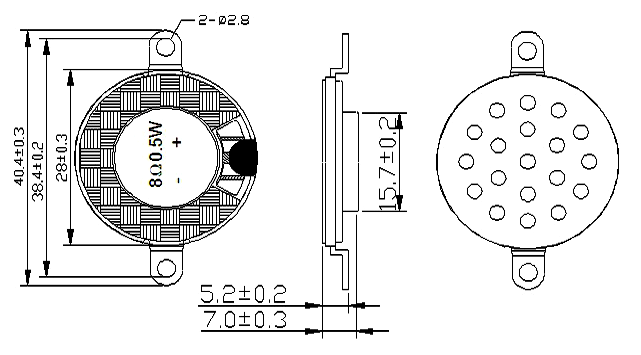

  • Diameter: 28mmx5mm
  • PDF
  • Description
  • Order

Product Description

28mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EST28N-C
Cone Material: Mylay
Edge: paper
Nominal Power: 1.0w
Maximum Power: 1.5w
Impedance: 4/8/16/32 ohm±15%Ω
Fo: 600hz
Response: Fo-6kHz
S.P.L:  90±3dB/W/M
Magnet Size: NdFeB12.5*1.5
RohsYes

3
