Mini Speaker

mylar speaker buzzer 28mm micro speaker EXD-2308

  • 23mmx8.5mm mini speaker buzzer 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EXD-2308-1-R

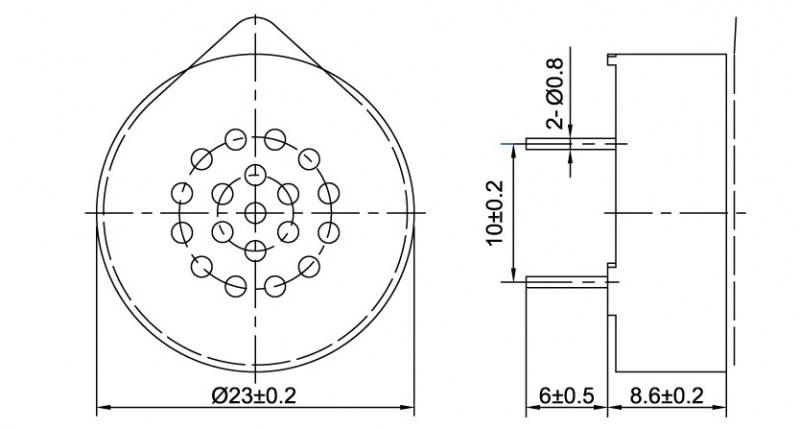

  • Diameter: 23mmx8.5mm
  • Description
  • Order

Product Description

23mmx8.5mm   mini  speaker buzzer 4/8/16/32/64/120 ohm 600hz 0.5W 2850 28054 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.EXD-2308-1-R
Rated Impedance (ohm)8±20%
Rated (Max.) Power (W)0.1(0.3)
Resonant Frequency (Hz)1500±20%
Frequency Range (Hz)fo～6000

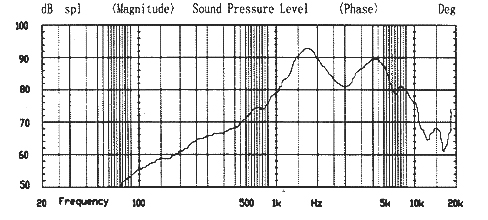

SPL (dB)88±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W
Buzzer &RattlesMust be normal at sine wave 2Vrms
Frame MaterialLCP
Operating Temperature  (℃)-30～+85
Storage Temperature    (℃)-40～+105
Weight (g)1.5
RoHSYes

3
