Mini Speaker

mylar speaker 36mm micro speaker ESP36N-A

  • 36mmx6mm mini speaker 4/8/16/32/64/120 ohm 5500hz 0.5W 3606 3660 waterproof mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,t

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP36N-A

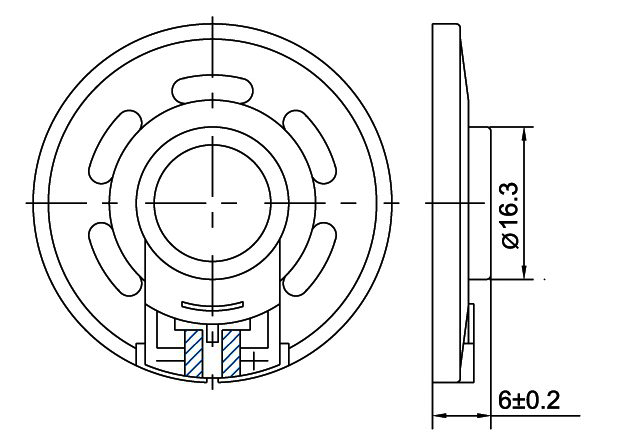

  • Diameter: 36mmx6mm
  • PDF
  • Description
  • Order

Product Description

36mmx6mm   mini  speaker 4/8/16/32/64/120 ohm 5500hz 0.5W 3606 3660  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.ESP36N-A
Cone Material: Mylay
Edge: Paper
Nominal Power: 0.25w
Maximum Power: 0.5w
Impedance: 4/8/18/32/64/120 ohm±15%Ω
Fo: 550hz

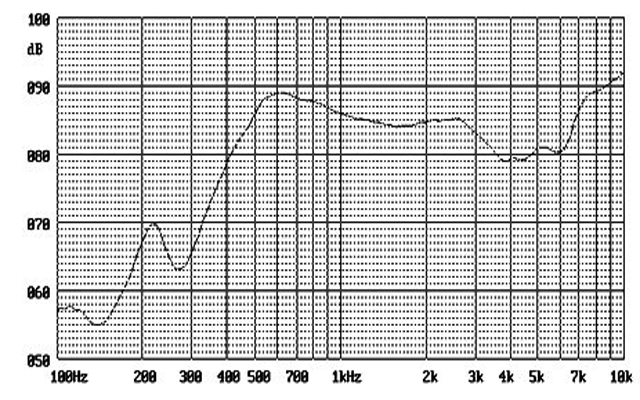

Response: Fo-20kHz
S.P.L:  91±3dB/W/M
Magnet Size:NdFeB
RohsYes

3
