Mini Speaker

waterproof speaker 36mm micro speaker ESP36W-B

  • 36mmx7.5mm mini speaker 4/8/16/32/64/120 ohm 550hz 0.5W 3675 waterproof mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,c

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP36W-B

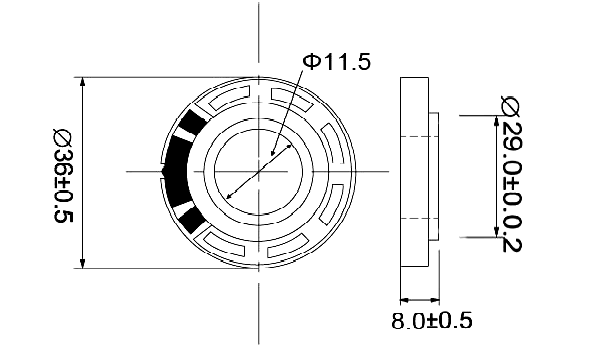

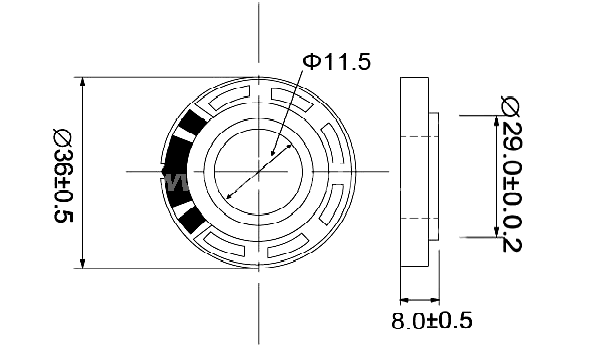

  • Diameter: 36mmx7.5mm
  • PDF
  • Description
  • Order

Product Description

36mmx7.5mm   mini  speaker 4/8/16/32/64/120 ohm 550hz 0.5W 3675  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.ESP36W-B
Cone Material: Mylay
Edge:
Nominal Power: 0.5w
Maximum Power: 1.0w
Impedance: 4/8/18/32/64/120 ohm±15%Ω
Fo: 550hz

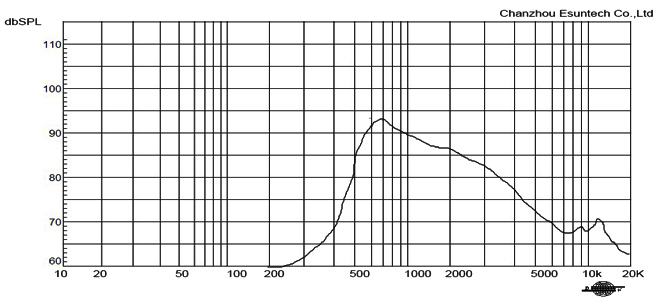

Response: Fo-20kHz
S.P.L:  91±3dB/W/M
Magnet Size: NdFeB
RohsYes
