Mini Speaker

mylar cone speaker 32mm mini speaker EST32N-A-R(spring pin)

  • 32mmx4.5mm mini speaker 4/8/16/32/64/120 ohm 380hz 0.5W 3250 3245 with spring soldered waterproof mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST32N-A-R(spring)

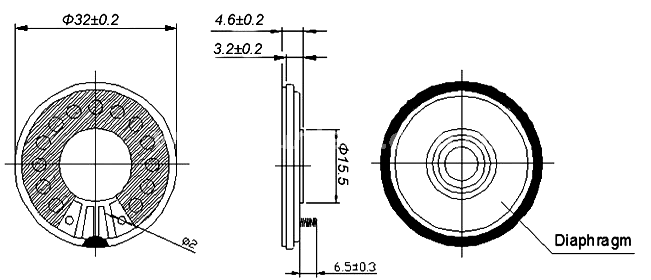

  • Diameter: 32mmx4.5mm
  • PDF
  • Description
  • Order

Product Description

32mmx4.5mm   mini  speaker 4/8/16/32/64/120 ohm 380hz 0.5W 3250 3245 with spring soldered  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.EST32N-A-R(spring)
Cone Material: Mylay
Edge: paper
Nominal Power: 0.25w
Maximum Power: 0.5w
Impedance: 4/8/18/32/64/120 ohm±15%
Fo: 400hz

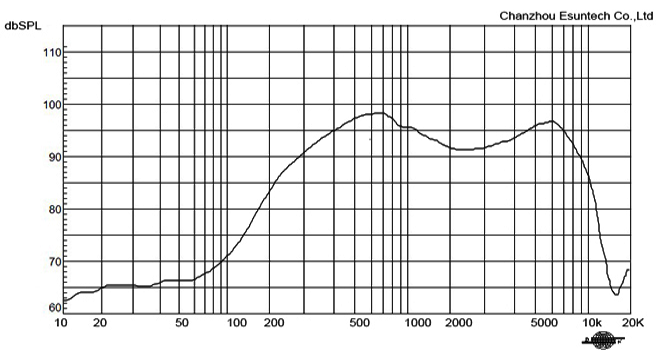

Response: Fo-6kHz
S.P.L:  93±3dB/W/M
Magnet: NdFeB
RohsYes
