Mini Speaker

mylar cone speaker EST36N-A doorbell big sound speaker

  • 36mmx5mm mini speaker 4/8/16/32/64/120 ohm 350hz 0.5W 3650 3605 waterproof mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,to

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST36N-A

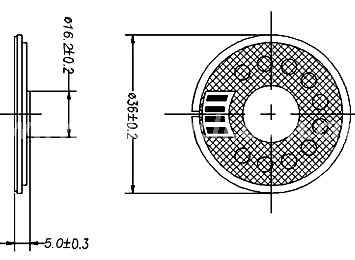

  • Diameter: 36mmx5mm
  • PDF
  • Description
  • Order

Product Description

36mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 350hz 0.5W 3650 3605  waterproof mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


4

Model No.EST36N-A
Cone Material: Mylay
Edge: paper
Nominal Power: 0.25w
Maximum Power: 0.5w
Impedance: 4/8/18/32/64/120 ohm±15%
Fo: 600hz

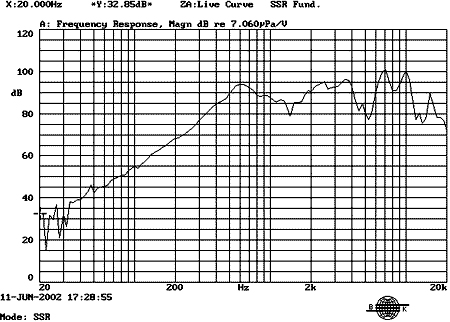

Response: Fo-6kHz
S.P.L:  91±3dB/W/M
Magnet: NdFeB
RohsYes

3
