Mini Speaker

50mm speaker ESP50W-B white big sound speaker

  • 50mmx11mm mini speaker 4/8/16/32/64/120 ohm 380hz 1W 5050 paper cone speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,telephone,

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP50W-B

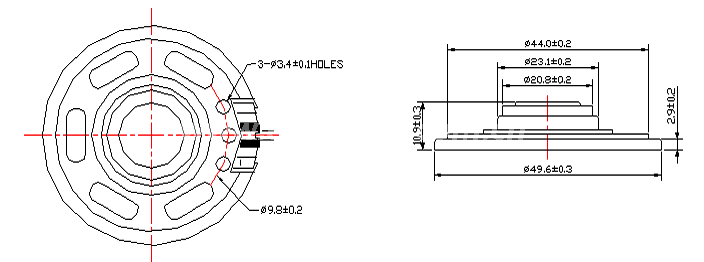

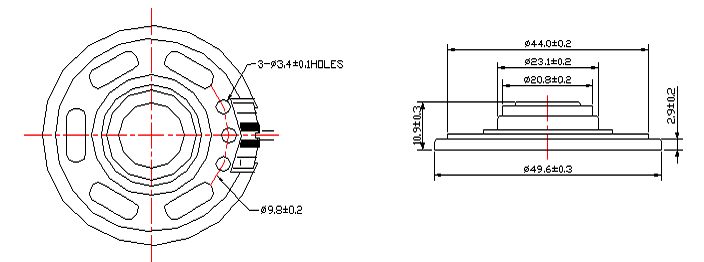

  • Diameter: 50mmx11mm
  • PDF
  • Description
  • Order

Product Description

50mmx11mm   mini  speaker 4/8/16/32/64/120 ohm 380hz 1W 5050  paper cone speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2


Model No.

ESP50W-B

Cone Material:

Paper

Edge:


Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

8/16/32/64/120 ohm±15%

Fo:

440hz

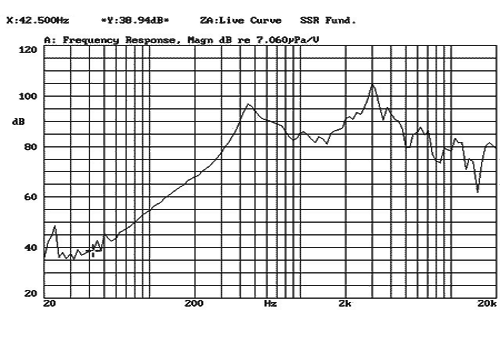

Response:

Fo-20kHz

S.P.L:

86±3dB/W/M

Magnet Size:

Ferrit 21mm

Rohs

Yes

3
