Mini Speaker

50mm speaker EST50N-C metal frame

  • 50mmx8mm mini speaker 4/8/16/32/64/120 ohm 150hz 1W 5080 mylar cone waterproof speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST50N-C

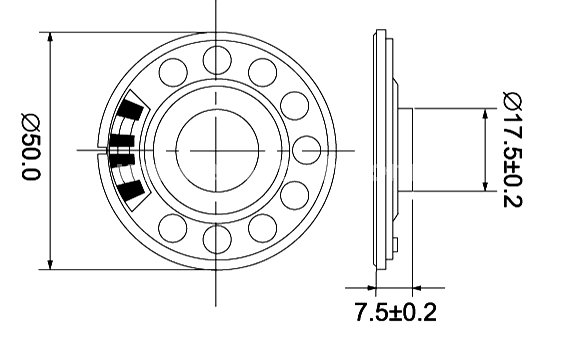

  • Diameter: 50mmx8mm
  • PDF
  • Description
  • Order

Product Description

50mmx8mm   mini  speaker 4/8/16/32/64/120 ohm 150hz 1W 5080  mylar cone waterproof speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2


Model No.EST50N-C
Cone Material: Mylay
Edge:
Nominal Power: 0.8w
Maximum Power: 1.0w
Impedance: 4/8/16/32/64/120 ohm±15%
Fo: 150hz

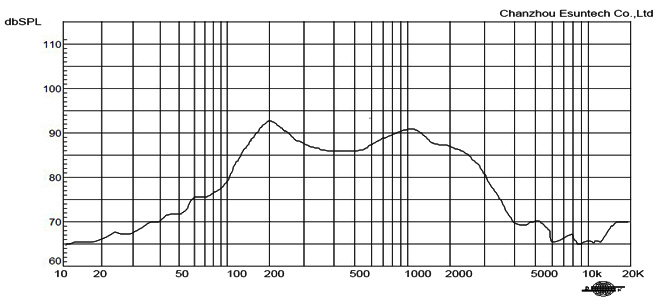

Response: Fo-20kHz
S.P.L:  85±3dB/W/M
Magnet : NdFeB
RohsYes

3
