Mini Speaker

40mm speaker EST40N-A metal frame

  • 40mmx5mm mini speaker 4/8/16/32/64/120 ohm 300hz 1W 4050 4005 mylar cone waterproof speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST40N-A

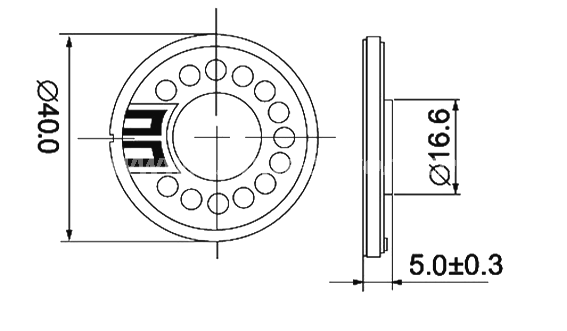

  • Diameter: 40mmx5mm
  • PDF
  • Description
  • Order

Product Description

40mmx5mm   mini  speaker 4/8/16/32/64/120 ohm 300hz 1W 4050 4005  mylar cone waterproof speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2


Model No.EST40N-A
Cone Material: Mylay
Edge: paper
Nominal Power: 0.5w
Maximum Power: 0.8w
Impedance: 4/8/16/32/64/120 ohm±15%
Fo: 300hz
Response: Fo-20kHz
S.P.L:  91±3dB/W/M
MagnetNdFeB
RohsYes

3
