Mini Speaker

40mm speaker EST40N-D hole mouting metal frame

  • 40mmx6mm mini speaker 4/8/16/32/64/120 ohm 300hz 1W 4050 4005 hole mounting mylar cone waterproof speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical applian

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST40N-D

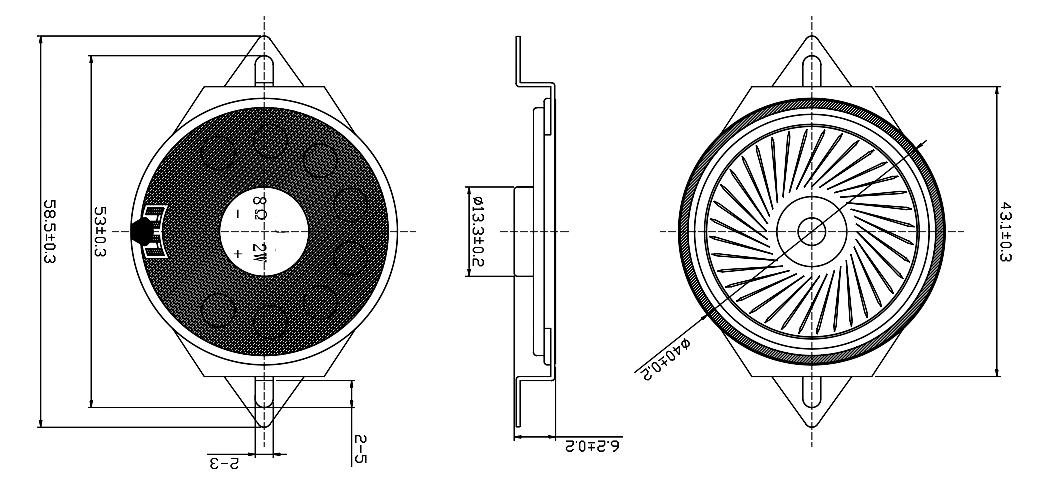

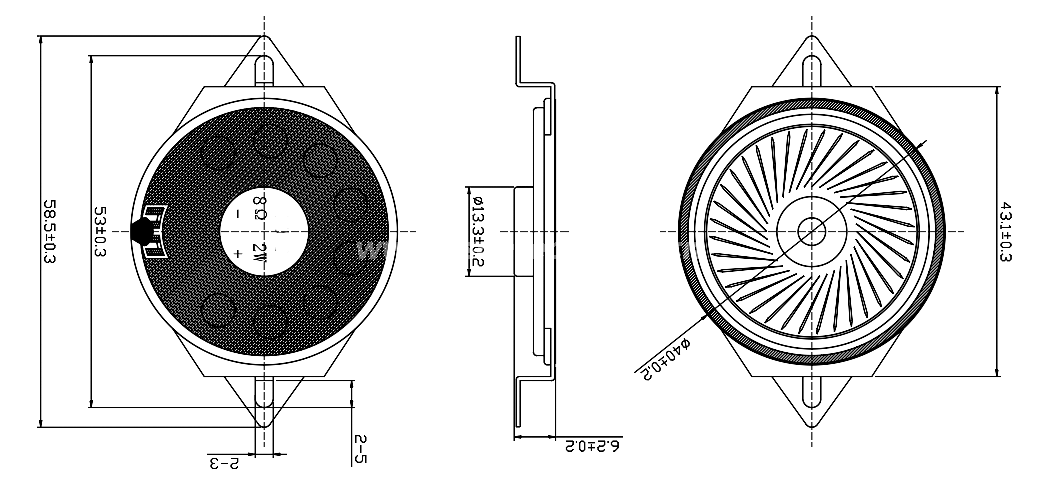

  • Diameter: 40mmx6mm
  • PDF
  • Description
  • Order

Product Description

40mmx6mm mini speaker 4/8/16/32/64/120 ohm 300hz 1W 4050 4005   hole mounting mylar cone waterproof speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.


Model No.EST40N-D
Cone Material: Mylay
Edge: Paper
Nominal Power: 2w
Maximum Power: 3w
Impedance: 4/8/16/32/64/120 ohm±15%
Fo: 530hz

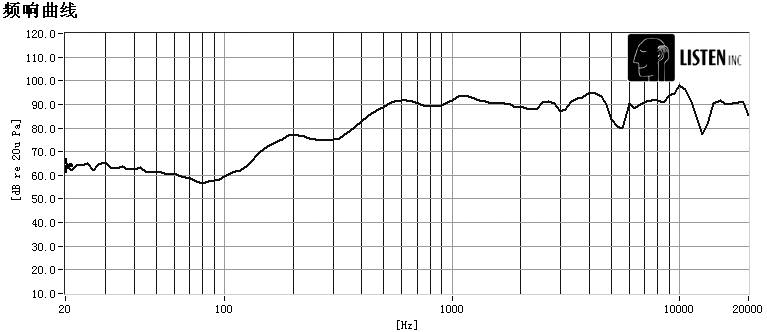

Response: Fo-20kHz
S.P.L:  91±3dB/W/M
Magnet : NdFeB
RohsYes
