Mini Speaker

small wiring speaker EST16N miniature speaker

  • 16mmx4mm mini speaker 550hz 1640 1604 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esun

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EST16N-01

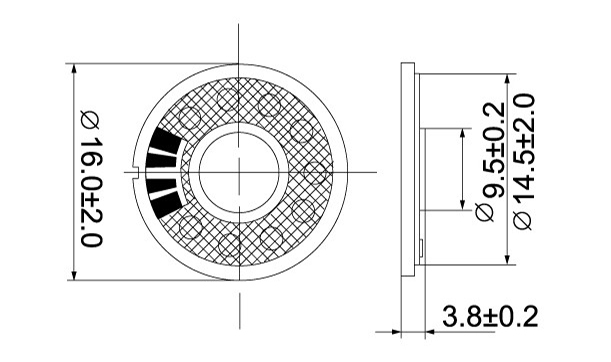

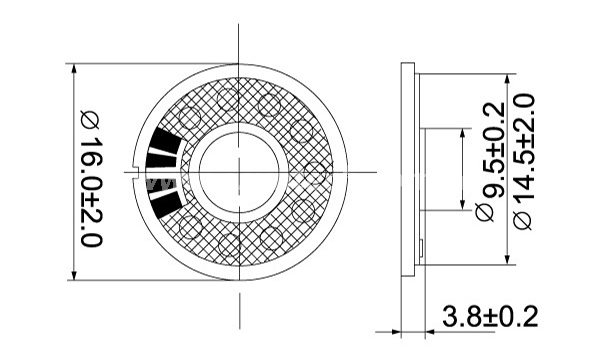

  • Diameter: 16mmx4mm
  • PDF
  • Description
  • Order

Product Description

16mmx4mm   mini  speaker 550hz 1640 1604 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


未标题-1 拷贝

Model No.EST16N-01
Diaphgramemylar
FrameSteel
Nominal Power: 80mw
Maximum Power: 100mw
Impedance: 8 ohm±15%Ω
Fo: 550 HZ

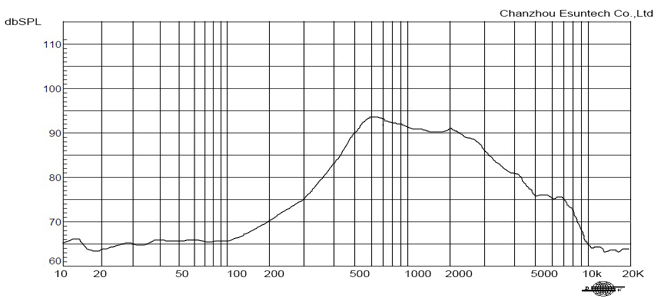

Response: Fo-20kHz
S.P.L90±3dB/0.1W/0.1
Magnet SizeNdFeB
RohsYes

3
