Mini Speaker

buzzer speaker 30mm pin speaker EXD41

  • 30mmx12mm PIN speaker auto buzzer 8 ohm 1200hz 1.5W 3012 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,cell phone,earpho

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EXD41-Y-1200-R8-15.0-R

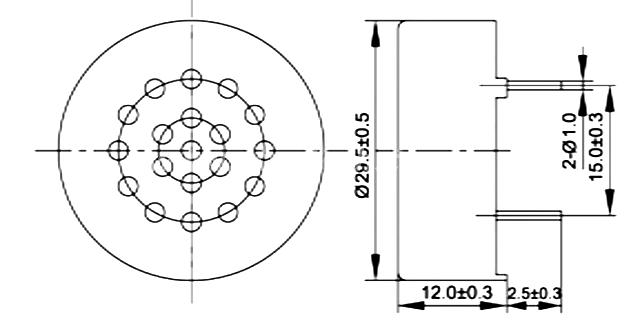

  • Diameter: 30mmx12mm
  • PDF
  • Description
  • Order

Product Description

30mmx12mm   PIN  speaker auto buzzer 8 ohm 1200hz 1.5W 3012 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2

Model No.

EXD41-Y-1200-R8-15.0-R

Rated Impedance (ohm)

8±20%

Rated (Max.) Power (W)

0.15(0.2)

Resonant Frequency (Hz)

1200±20%

Frequency Range (Hz)

fo～6000

SPL (dB)

81±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W

Buzzer &Rattles

Must be normal at sine wave 2Vrms

Frame Material

LCP

Operating Temperature  (℃)

-20~+60

Storage Temperature(℃)

-30～+70

Weight (g)


RoHS

Yes

3
