Mini Speaker

SMD speaker buzzer EDMS1540 mini buzzer

  • 15mmx15mmx4mm SMD mini speaker 800hz 1540 1504 annunciator transducer & buzzer high quality for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd. Model No.E

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EDMS1540S-01-R8W0.8-R
  • Diameter: EDMS1540S-01-R8W0.8-R
  • PDF
  • Description
  • Order

Product Description

15mmx15mmx4mm SMD mini  speaker 800hz 1540 1504  annunciator transducer & buzzer  high quality   for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd.



Model No.EDMS1540S-01-R8W0.8-R
Rated Impedance (ohm)8±20%
Rated (Max.) Power (W)0.5(0.8)
Resonant Frequency (Hz)800±20%
Frequency Range (Hz)fo～6000

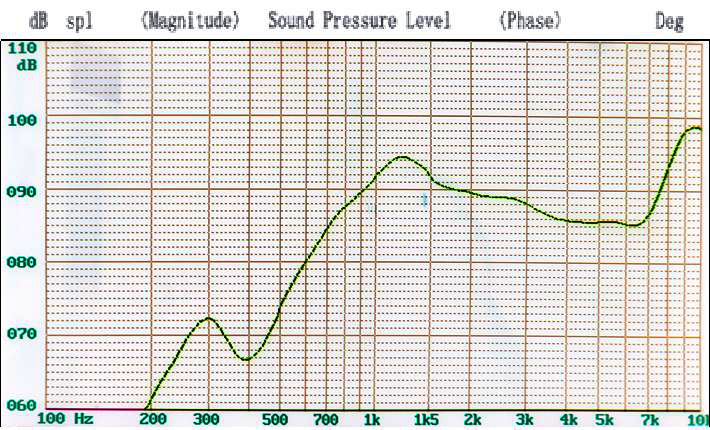

SPL (dB)88±3 at 1k,1.6k,2k,3.2kHz,0.1m0.5W
Buzzer &RattlesMust be normal at sine wave 2Vrms
Frame MaterialLCP
Operating Temperature  (℃)-30～+85
Storage Temperature    (℃)-40～+105
Weight (g)1.5
RoHSYes

3
