Mini Speaker

57mm speaker ESP57W-A plastic frame

  • 57mmx11mm mini speaker 4/8/16/32/64/120 ohm 400hz 1W 5710 psper cone plastic speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,computer,toy,tel

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP57W-A

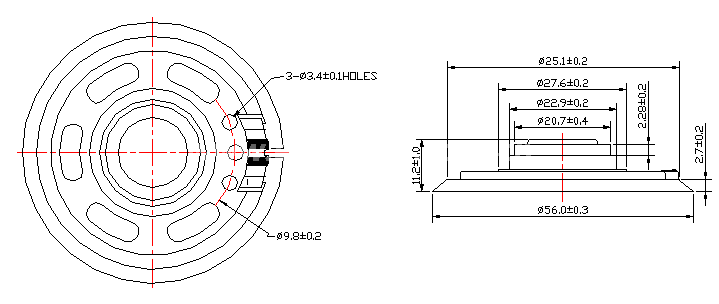

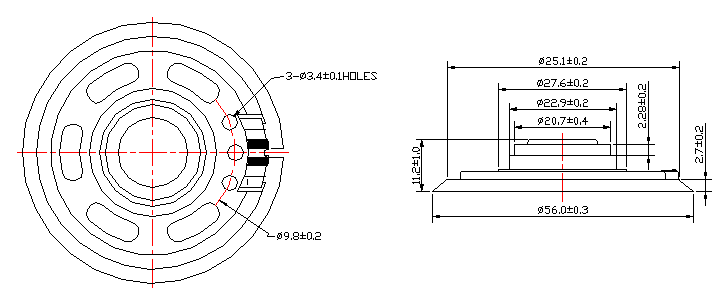

  • Diameter: 57mmx11mm
  • PDF
  • Description
  • Order

Product Description

57mmx11mm mini speaker 4/8/16/32/64/120 ohm 400hz 1W  5710  psper cone  plastic speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,computer,toy,telephone,cell phone,earphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

2


Model No.

ESP57W-A

Cone Material:

Paper

Edge:


Nominal Power:

0.5w

Maximum Power:

1.0w

Impedance:

ohm±15%Ω

Fo:

400hz

Response:

Fo-20kHz

S.P.L:

86±3dB/W/M

Magnet Size:

 21mm

Rohs

yes

3
