Mini Speaker

SMD speaker buzzer EDMS1340 miniature speaker

  • 3mmx13mmx4mm SMD mini speaker 850hz 1340 1304 annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EDMS1340-R08W0.7-A

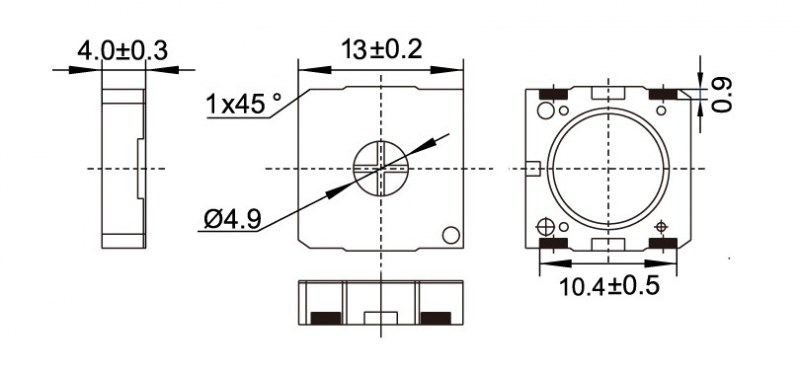

  • Diameter: 13mmx13mmx4mm
  • Description
  • Order

Product Description

3mmx13mmx4mm SMD mini  speaker 850hz 1340  1304 annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,meter and instrument - Changzhou Esuntech Co Ltd.


2

Model No.EDMS1340-R08W0.7-A
Rated Impedance (ohm)8±20%
Rated (Max.) Power (W)0.7(1.0)
Resonant Frequency (Hz)850±20%

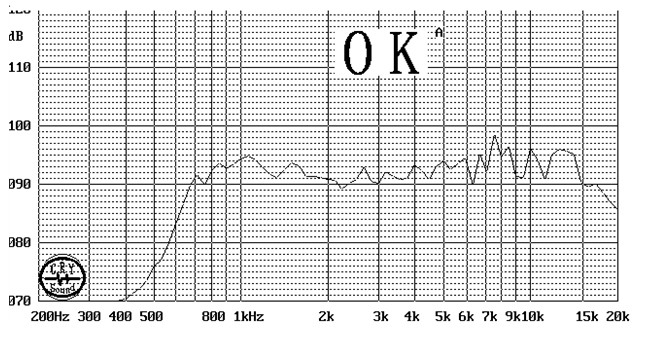

Frequency Range (Hz)fo～6000
SPL (dB)88±3 at 1k,1.6k,2k,3.2kHz, 0.1m0.5W
Buzzer &RattlesMust be normal at sine wave 2Vrms
Frame MaterialLCP
Operating Temperature  (℃)-30～+85
Storage Temperature    (℃)-40～+105
Weight (g)1.5
RoHSYes

3
