Mini Speaker

small speaker ESP13N miniature speaker

  • Model No.ESP13N-01Cone Material: MylarEdge: Nominal Power: 0.5wMaximum Power: 0.8wImpedance: 8ohm15%ΩFo: 1300hzResponse: Fo-20kHzS.P.L: 863dB/W/MMagnet materialNdFeBRohs Yes

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP13N

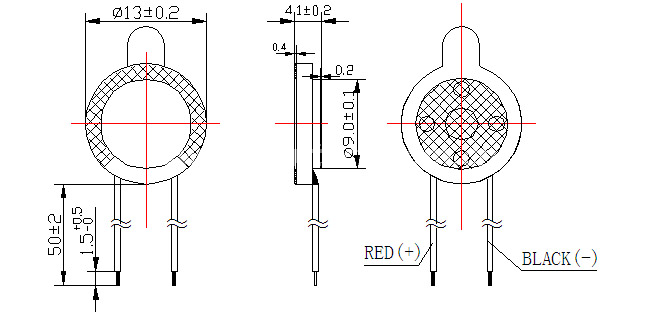

  • Diameter: 13mmx4mm
  • Description
  • Order

Product Description

2

Model No.ESP13N-01
Cone Material: Mylar
Edge:
Nominal Power: 0.5w
Maximum Power: 0.8w
Impedance: 8ohm±15%Ω
Fo: 1300hz

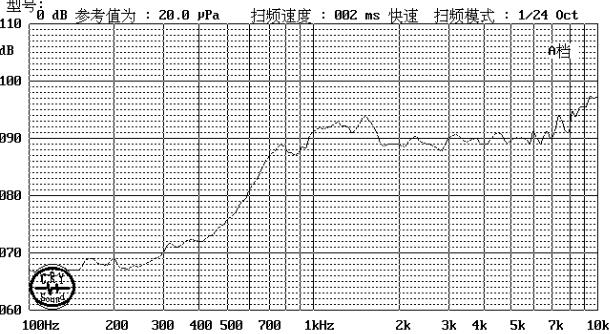

Response: Fo-20kHz
S.P.L:  86±3dB/W/M
Magnet materialNdFeB
Rohs Yes
