Mini Speaker

mylar speaker ESP29W 29mmx9mm micro speaker

  • 29mmx9mm mini speaker 4/8/16/32 ohm 600hz 2909 2990 mylar speaker annunciator transducer & buzzer high quality alarm buzzer for household electrical appliances,toy,medical,meter and instrument -

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ESP29W-B

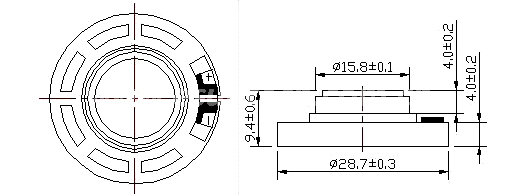

  • Diameter: 29mmx9mm
  • PDF
  • Description
  • Order

Product Description

29mmx9mm   mini  speaker 4/8/16/32 ohm 600hz 2909 2990 mylar speaker annunciator transducer & buzzer  high quality  alarm buzzer for household electrical appliances,toy,medical,meter and instrument - Changzhou Esuntech Co Ltd.


微信图片_20210127111340

Model No.ESP29W-B
Cone Material: Mylay
Edge: Paper
Nominal Power: 0.25w
Maximum Power: 0.5w
Impedance: 8/16/32 ohm±15%Ω
Fo: 550hz
Response: Fo-6kHz
S.P.L:  91±3dB/W/M
Magnet Size: Ferrit
RohsYes
