Loudspeaker 52mm YD52-08-8F40P-R Min Full Range Multimedia Speaker Drivers

  • Loudspeaker 52mm YD52-08-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co LtdModelYD52-08-8F40P-RDimension:52*52*32H mmCone Material:PaperEdge:PaperNominal Power:5WMaximum Power

  • Availability: Available
  • Brand: Esuntech
  • MODEL: YD52-08-8F40P-R
  • PDF
  • Description
  • Order

Product Description

Loudspeaker 52mm YD52-08-8F40P-R Min Full Range Multimidia Speaker Drivers-Changzhou Esuntech Co Ltd






ModelYD52-08-8F40P-R

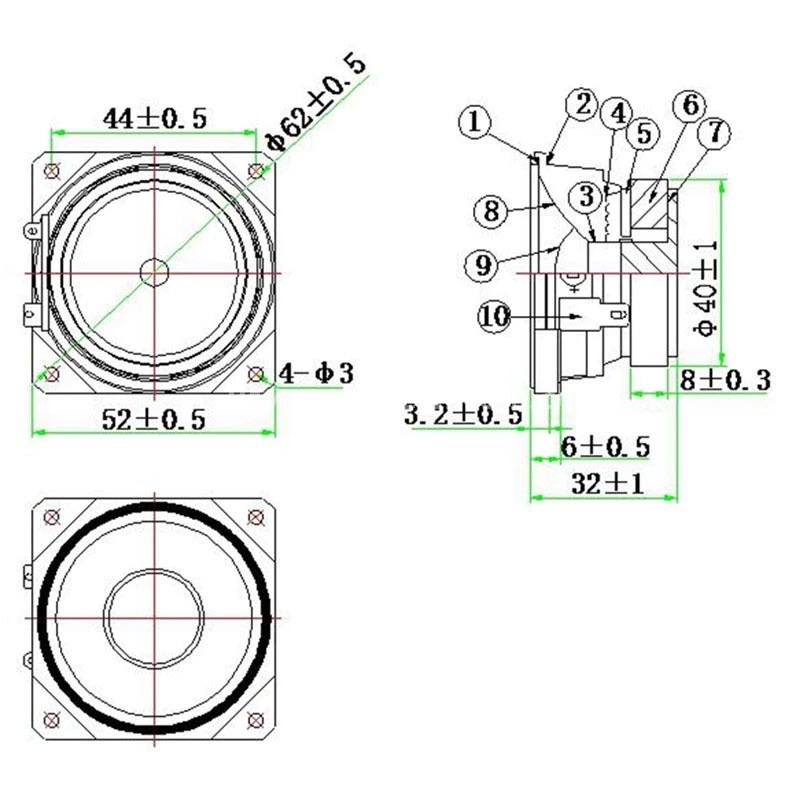

Dimension:52*52*32H mm
Cone Material:Paper
Edge:Paper
Nominal Power:5W
Maximum Power:8W
Impedance:8±15%Ω
Voice coil:Φ13.28mm KSV+Cu
Fo:350±20%Hz

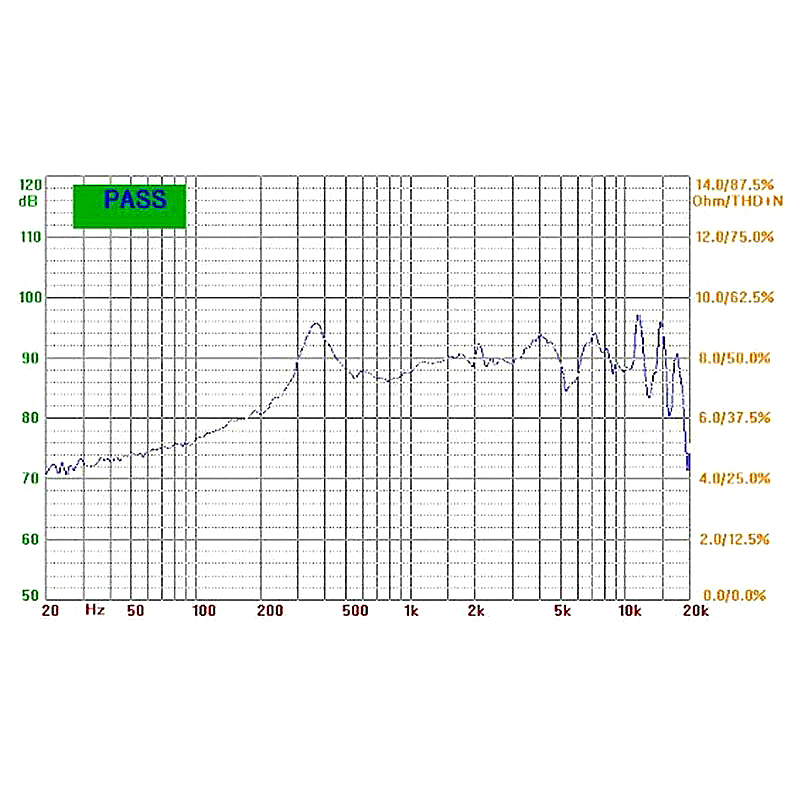

Response:Fo~18KHZ
S.P.L:88±3dB(AT 0.1M/0.1W, AT 0.6,0.8,1.0,1.2KHZ)
Magnet Size:Φ40*19*8mm
Net weight:93g±8%
