Receiver

receiver ERV28070-W(SD153-BH)

  • 28mmx7mm SD153 wired receiver 3110 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Es

  • Availability: Available
  • Brand: Esuntech
  • MODEL: ERV28070-W(SD153-BH)
  • Diameter: Φ28X7.0mm
  • Description
  • Order

Product Description

28mmx7mm SD153 wired receiver 3110 150 ohm 60 70 ohm 300OHM for household electrical appliances,computer,toy,telephone,cell phone,earphone,headset headphone,medical,meter and instrument - Changzhou Esuntech Co Ltd.

22 拷贝

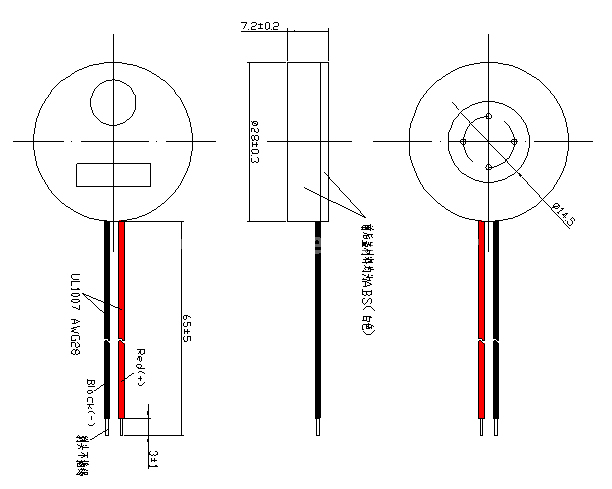

ModelERV28070-W(SD153-BH)
DiameterΦ28X7.0mm
RATED POWER10mW.
MAX POWER20mW.
Input voltage60mV (Sine wave) measured with IEC318 coupler
Impedance150±20% Ω(@ 1KHz 1V)
SOUND PRESSURE LEVEL93±2dB SPL @1KHz (0dB SPL=20μPa)
THDless than 5% at 1kHz ,with 0.3V

3
