Piezo Element and Vibrator

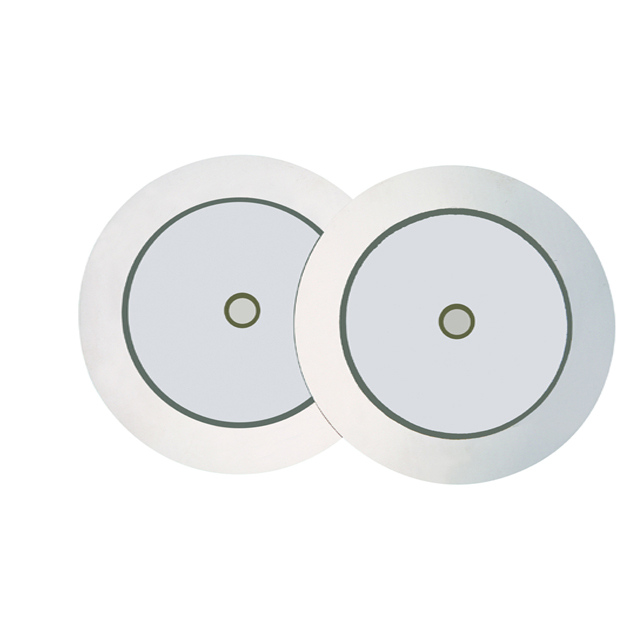

piezoelectric ceramic buzzer plate B1 FT

  • PART NO.Fr(KHz)Zr( Ω)C(nF)Dimension(mm)MetalDdTtFT-12T-5.8B15.80.550012nF30%1290.120.05BrassFT-12H-5.8B15.80.550012nF30%1290.120.05A11oyFT-15H-4.0B14.00.550030nF30%15120.130.05A11oyFT-15T-4.2B14.20.53

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • Description
  • Order

Product Description

2

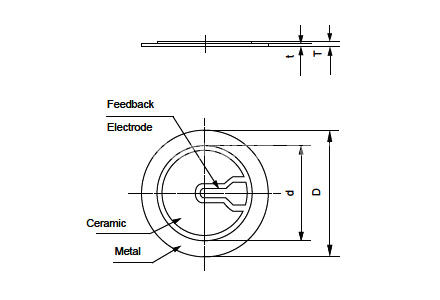

PART NO.Fr(KHz)Zr( Ω)C(nF)Dimension(mm)Metal
DdTt
FT-12T-5.8B15.8±0.550012nF±30%1290.120.05Brass
FT-12H-5.8B15.8±0.550012nF±30%1290.120.05A11oy
FT-15H-4.0B14.0±0.550030nF±30%15120.130.05A11oy
FT-15T-4.2B14.2±0.530025nF±30%15120.140.05Brass
FT-18T-3.6B13.6±0.530012nF±30%18120.20.08Brass
FT-20H-3.6B13.6±0.530020nF±30%20150.220.1A11oy
FT-20T-4.0B14.0±0.530020nF+30%20150.260.14Brass
FT-20T-4.2B14.2±0.530024nF±30%20150.310.2Brass
FT-20G-4.2B14.2±0.530015nF±30%20150.260.1S-T
FT-20T-5.3B15.34±0.530015nF±30%20150.320.15Brass
FT-20T-6.0B16.0±0.530012nF±30%20150.420.2Brass
FT-20T-7.0B17.0±0.530012nF±30%20150.470.25Brass
FT-21G-6.5B16.5±0.530012nF±30%21150.460.24S-T
FT-21G-7.0B17.0±0.530012nF±30%21150.450.23S-T
FT-22.5G-6.0B16.0±0.530012nF±30%22.516.80.420.2S-T
FT-27T-4.0B14.0±0.530020nF±30%27200.470.25Brass
FT-35T-2.9B12.9±0.530030nF±30%35250.620.4Brass
FT-35G-2.9B12.9±0.530025nF±l30%35250.520.3S-T
