Piezo Element and Vibrator

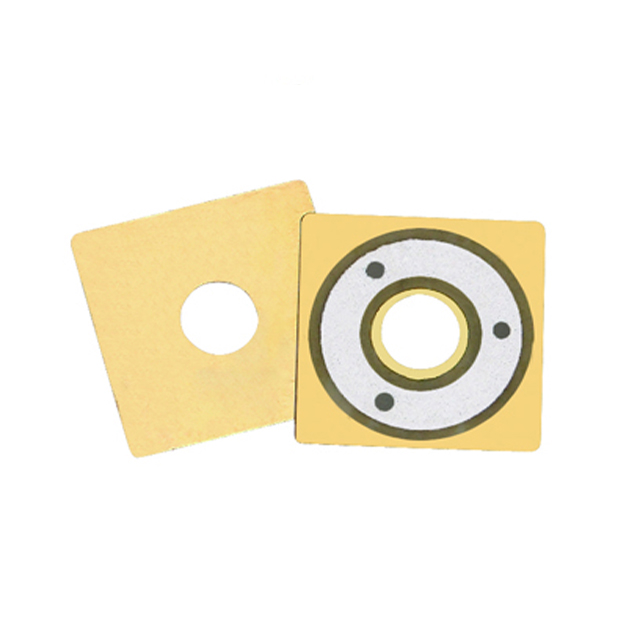

piezoelectric ceramic buzzer plate A2 for bond conductive earphone

  • Piezo vibrator for bond condutive earphone and other appliance.Round shape:Model No.Fr(KHz)Zr( Ω)C(nF)ShapeDd1d2Tt1 t2Metal (mm)(mm)(mm)(mm)(mm)(mm) FT-8T-10.0A210.0+/-0.515006+/-30%A287.52.40.120.050

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • Description
  • Order

Product Description

Piezo vibrator for bond condutive earphone and other appliance.

22

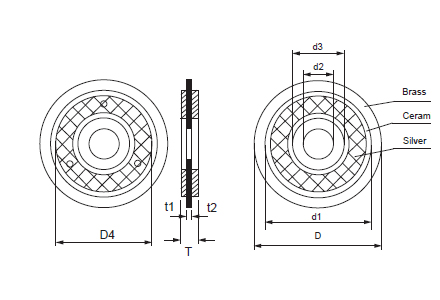

Round shape:


Model No.Fr(KHz)Zr( Ω)C(nF)ShapeDd1d2Tt1 t2Metal
 (mm)(mm)(mm)(mm)(mm)(mm)
FT-8T-10.0A210.0+/-0.515006+/-30%A287.52.40.120.050Brass
FT-12T-7.5A312+/-0.0550050+/-30%A312102.80.20.0650.07Brass
FT-12H-7.5A33.5+/-1.050050+/-30%A312102.80.20.0650.07Allo

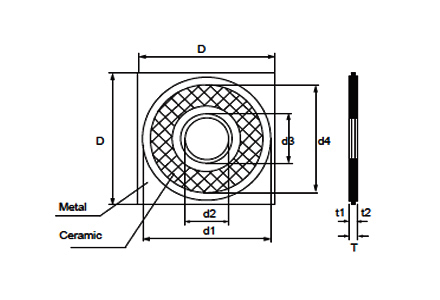

Square shaep:


Model No.Fr(KHz)Zr( Ω)C(nF)ShapeDd1d2Tt1 t2Metal
 (mm)(mm)(mm)(mm)(mm)(mm)
FT-8x8T-7.0D27.0+/-0.515006+/-30%D28*86.52.50.120.050Bra
