Piezo Element and Vibrator

Description
Order

Product Description

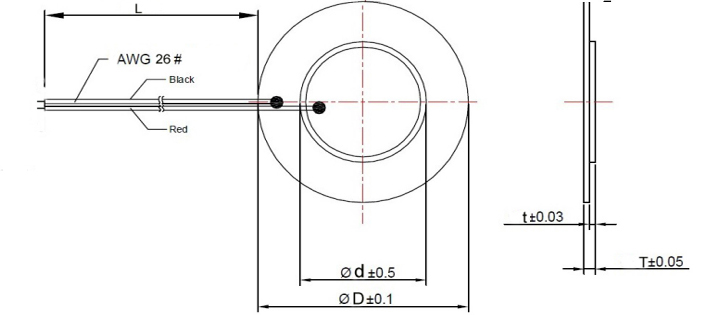

带线片子图形

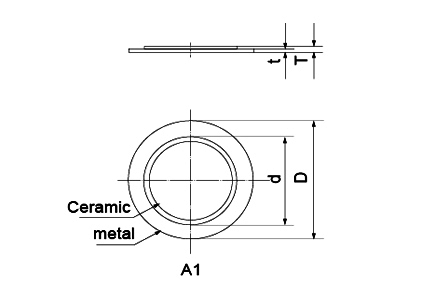

model No.	Fr(KHz)	Zr( Ω)	C(nF)	Dimension(mm)				Metal
model No.	Fr(KHz)	Zr( Ω)	C(nF)	D	d	T	t	Metal
FT-9.9H-7.5A1	7.5±1.0	500	10nF±30%	9.9	7	0.12	0.05	A11oy
FT-10.5H-10.0A1	10.0±0.8	500	5.5nF±30%	10.5	8	0.17	0.05	A11oy
FF-11H-6.5A1	6.5±0.5	500	10nF±30%	11	8	0.12	0.05	A11oy
FT-11H-9.0A1	9.0±0.5	500	11nF±30%	11	8	0.17	0.1	A11oy
FT-11G-9.6A1	9.6±0.5	500	12nF±30%	11	8	0.17	0.1	S-steel
FT-11T-9.6A1	9.6±0.5	500	12nF±30%	11	8	0.17	0.1	Brass
FT-11T-10.0A1	10.0±0.9	300	9.5nF±30%	11	8	0.19	0.11	Brass
FT-12T-5.3A1	5.3±0.5	500	15nF±30%	12	9	0.12	0.05	Brass
FT-12H-5.5A1	5.5±0.5	500	13nF±30%	12	9	0.12	0.05	A11oy
FT-12H-6.0A1	6.0±0.5	500	13nF±30%	12	9	0.12	0.05	A11oy
FT-12T-6.0A1	6.0±0.5	500	17nF±30%	12	9	0.12	0.06	Brass
FT-12T-6.5A1	6.5±0.5	300	15nF±30%	12	9	0.15	0.09	Brass
FT-12T-8.0A1	8.0±0.5	300	15nF±30%	12	9	0.19	0.1	Brass
FT-12T-8.5A1	8.5±0.7	300	10nF_30%	12	9	0.2	0.08	Brass
FT-12T-9.0A1	9.0±0.5	300	12nF±30%	12	10	0.2	0.1	Brass
FT-12T-9.05A1	9.05±0.5	300	15nF±30%	12	9	0.22	0.1	Brass
FT-12.5T-8.5A1	8.5±0.5	300	11nF±30%	12.5	10	0.22	0.1	Brass
FT-13H-4.5A1	4.5±0.5	500	15nF±30%	13	9	0.12	0.05	A11oy
FT-13T-6.5A1	6.5±0.5	500	13nF±30%	13	9	0.18	0.1	Brass
FT-13.5T-7.0A1	7.0±0.5	300	12nF±30%	13.5	9	0.22	0.1	Brass
FT-14H-4.3A1	4.3±0.5	300	70nF±30%	14	12	0.12	0.05	A11oy
FT-15T-3.5A1	3.5±0.5	300	35nF±30%	15	12	0.12	0.05	Brass
FT-15H-4.2A1	4.2±0.5	500	34nF±30%	15	12	0.13	0.05	A11oy
FT-15H-4.6A1	4.6±0.5	500	20nF±30%	15	12	0.2	0.1	A11oy
FT-15T-4.5A1	4.5±0.5	300	12nF±30%	15	9	0.2	0.1	Brass
FT-15T-5.8A1	5.8±0.5	800	10nF±30%	15	9	0.21	0.09	Brass
FT-15T-6.0A1	6.0±0.5	300	15nF±30%	15	12	0.22	0.1	Brass
FF-15T-6.0A1	6.0±0.5	300	10nF±30%	15	11.3	0.22	0.1	Brass
FT-15T-6.0A1	6.0±0.5	300	11nF±30%	15	10	0.22	0.1	Brass
FT-15T-9.05A1	9.05±0.5	300	9nF±30%	15	10	0.32	0.12	Brass
FT-15T-10.0A1	10.0±0.5	300	9nF±30%	15	11.3	0.37	0.2	Brass
FT-17.2H-3.5A1	3.5±0.5	300	32nF±30%	17.2	13.4	0.18	0.1	A11oy
FT-18T-3.6A1	3.6±0.5	300	15nF±30%	18	12	0.2	0.08	Brass
FT-20H-2.0A1	2.0±0.5	300	70nF±30%	20	15	0.13	0.05	A11oy
FT-20T-2.5A1	2.5±0.5	300	70nF±30%	20	15	0.15	0.08	Brass
FT-20H-2.6A1	2.6±0.5	300	24nF±30%	20	15	0.15	0.05	A11oy
FF-20H-3.2A1	3.2±0.5	300	24nF±30%	20	15	0.2	0.1	A11oy
FT-20T-3.4A1	3.4±0.5	300	20nF±30%	20	15	0.22	0.1	Brass
FT-19.9T-3.6A1	3.6±0.5	300	20nF+30%	20	14	0.22	0.1	Brass
FT-20T-3.6A1	3.6±0.5	300	21nF±30%	20	15	0.22	0.1	Brass
FT-20T-3.8A1	3.8±0.5	300	19nF±30%	20	15	0.26	0.13	Brass
FT-20T-4.0A1	4.0±0.5	300	20nF±30%	20	15	0.22	0.14	Brass
FT-20T-4.0A1	4.0±0.5	300	26nF±30%	20	15	0.26	0.14	Brass
FT-20T-4.8A1	4.8±0.5	300	16nF±30%	20	15	0.3	0.15	Brass
FT-20T-5.5A1	5.5±0.5	300	15nF±30%	20	15	0.37	0.2	Brass
FT-20T-6.0A1	6.0±0.5	300	13nF±30%	20	15	0.42	0.2	Brass
FT-20T-6.5A1	6.5±0.5	300	15nF±30%	20	15	0.42	0.25	Brass
FT-20T-7.2A1	7.2±0.5	300	12nF±30%	20	15	0.47	0.25	Brass
FT-20G-7.5A1	7.5±0.5	300	12nF±30%	20	15	0.45	0.23	S-steel
FT-21T-4.5A1	4.5±0.5	300	18nF+30%	21	15	0.3	0.15	Brass
FT-22T-4.8A1	4.8±0.5	300	12nF±30%	22	16.8	0.37	0.15	Brass
FT-27T-2.0A1	2.0±0.5	300	50nF±30%	27	20	0.2	0.1	Brass
FT-27T-2.3A1	2.3±0.5	300	45nF±30%	27	20	0.22	0.1	Brass
FT-27T-2.5A1	2.5±0.5	300	45nF±30%	27	20	0.26	0.14	Brass
FT-27T-2.8A1	2.8±0.5	300	20nF±30%	27	20	0.32	0.1	Brass
FT-27T-3.5A1	3.5±0.5	300	30nF±30%	27	20	0.37	0.2	Brass
FT-27T-3.6A1	3.6±0.5	300	20nF±30%	27	20	0.42	0.2	Brass
FT-27G-3.6A1	3.6±0.5	300	20nF±30%	27	20	0.42	0.2	S-steel
FT-27T-4.0A1	4.0±0.5	300	23nF±30%	27	20	0.52	0.3	Brass
FT-27T-4.0A1	4.0±0.5	300	20nF±30%	27	20	0.47	0.25	Brass
FT-27T-4.6A1	4.6±0.5	300	20nF±30%	27	20	0.52	0.3	Brass
FT-27T-6.0A1	6.0±0.5	800	15nF±30%	27	25	0.65	0.2	Brass
FT-30T-0.9A1	0.9±0.5	300	49nF±30%	30	20	0.16	0.05	Brass
FT-31T-1.4A1	1.4±0.5	300	45nF±30%	31	20	0.22	0.1	Brass
FT-31T-1.4A1	1.4±0.5	300	70nFT30%	31	20	0.22	0.1	Brass
FT-31H-1.4A1	1.4±0.5	300	45nF±30%	31	20	0.22	0.1	A11oy
FT-31G-1.6A1	1.6±0.5	300	45nF±30%	31	20	0.22	0.1	S-steel
FT-32T-2.9A1	2.9±0.5	300	30nF±30%	32	25	0.42	0.2	Brass
FT-35T-1.8A1	1.8±0.5	300	70nF±30%	35	25	0.32	0.2	Brass
FT-35T-2.3A1	2.3±0.5	300	28nF±30%	35	25	0.42	0.2	Brass
FT-35T-2.6A1	2.6±0.5	300	28nF±30%	35	25	0.52	0.3	Brass
FT-41H-0.7A1	0.7±0.5	800	80nF±30%	41	25	0.22	0.1	A11oy
FT-41T-1.0A1	1.0±0.5	800	80nF±30%	41	25	0.22	0.1	Brass
FT-41T-1.2A1	1.2±0.5	800	75nF±30%	41	25	0.27	0.15	Brass
FT-43T-0.8A1	0.8±0.5	800	75nF±30%	43	25	0.22	0.1	Brass
FT-45T-0.7A1	0.7±0.5	300	80nF±30%	45	25	0.22	0.1	Brass
FT-50T-1.8Al	1.8±0.5	300	75nF±30%	50	25	0.22	0.1	Brass
FT-50T-2.1A1	2.1±0.5	300	75nF±30%	50	25	0.27	0.15	Brass
FT-50T-2.7A1	2.7±0.5	300	35nF±30%	50	25	0.42	0.2	Brass
FT-50T-3.0A1	3.0±0.5	300	28nF±30%	50	25	0.42	0.2	Brass
FT-55G-3.2A1	3.2±0.5	300	30nF±30%	55	25	0.42	0.2	S-steel
FT-70T-3.0A1	3.0±0.5	300	60nF±30%	70	50	0.63	0.2	Brass
