SMD Piezo Transducer

SMD Piezoelectric buzzer EPT9020S SMT transducer

  • 9mm*9mm*2mm 3V 0902 9020 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT9020S-H

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

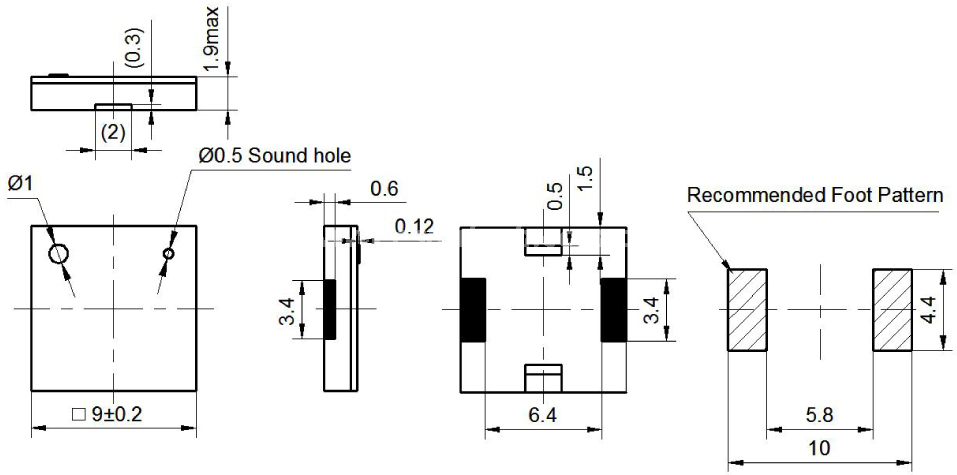

9mm*9mm*2mm 3V 0902 9020 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

EPT9018BS-HL-03-4.0-12-R


Model No.EPT9020S-HL-3-4.0-12-R
Rated Voltage (Vp-p)3
Max Input Voltage (Vp-p)1~25
Rated Current (mA)≤3
Resonance Frequency (KHz)4.0±0.5
Capacitance at 120Hz (pF)12000±30%
Sound Output at 10cm (dB)≥70
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-40～+85
Weight (g)0.25
Housing MaterialLCP
RoHSYes

33
