SMD Piezo Transducer

SMD Piezo electric buzzer EPT1325S-HL-05-4.1-16-R SMT transducer

  • 13mm*13mm*2.5mm 5V 1325 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1325S-HL

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1325S-HL-05-4.1-16-R

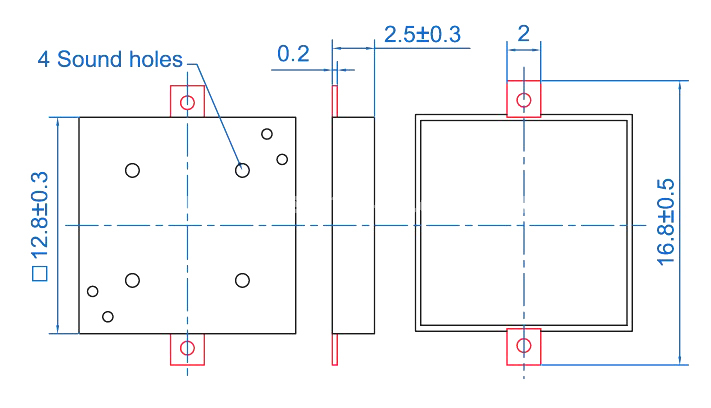

  • Diameter: 13mm*13mm*2.5mm
  • PDF
  • Description
  • Order

Product Description

13mm*13mm*2.5mm 5V 1325 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPT1325S-HL-05-4.1-16-R
Rated Voltage (Vp-p)5
Max Input Voltage (Vp-p)1~25
Rated Current (mA)≤5
Resonance Frequency (Hz)4100±500
Capacitance at 120Hz (pF)16000±30%

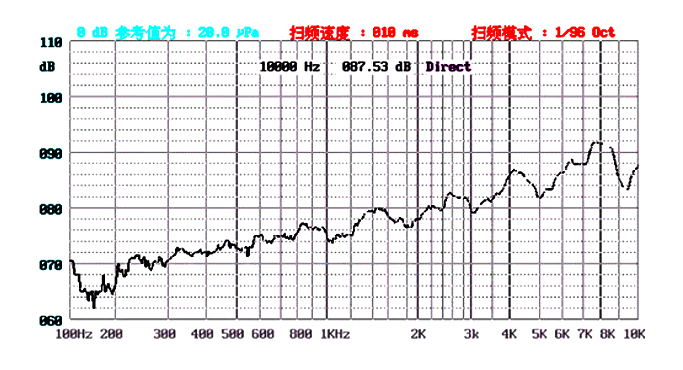

Sound Output at 10cm (dB)≥85
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.5
Housing MaterialLCP
RoHSYes
