SMD Piezo Transducer

SMD Piezo transducer EPT1460S mini buzzer

  • 14mm*14mm*6mm 7V 1460 1406 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1460S

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1460S-HS-7.0-40-15-R

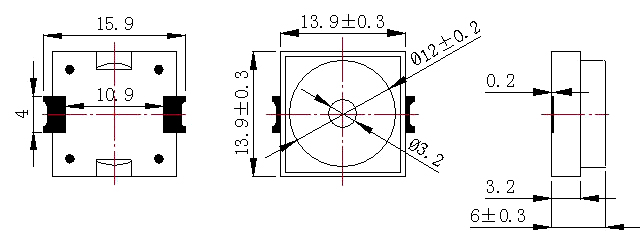

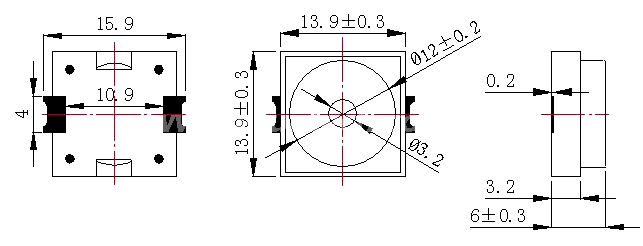

  • Diameter: 14mm*14mm*6mm
  • PDF
  • Description
  • Order

Product Description

14mm*14mm*6mm 7V 1460 1406 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPT1460S-HS-7.0-40-15-R
Rated Voltage (Vp-p)7
Max Input Voltage (Vp-p)30
Rated Current (mA)≤12
Resonance Frequency (KHz)4±0.5
Capacitance at 120Hz (pF)15000±30%

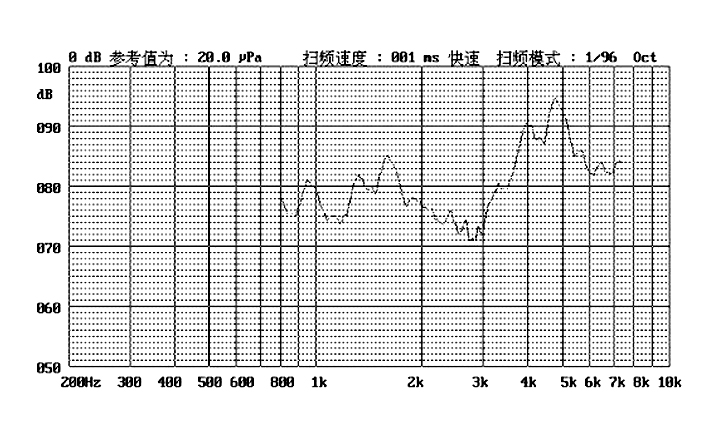

Sound Output at 10cm (dB)≥90 at 4.0KHz Square Wave 5Vp-p
Operating Temperature (℃)-40～+80
Storage Temperature (℃)-40～+90
Weight (g)2
Housing MaterialPPS
RoHSYes
