SMD Piezo Transducer

SMD Piezo transducer EPT1410S-HS-10-4.3-14-R 10V 14mm

  • 14mm*14mm*10mm 10V 1410 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1410S-HS

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1410S-HS-10-4.3-14-R

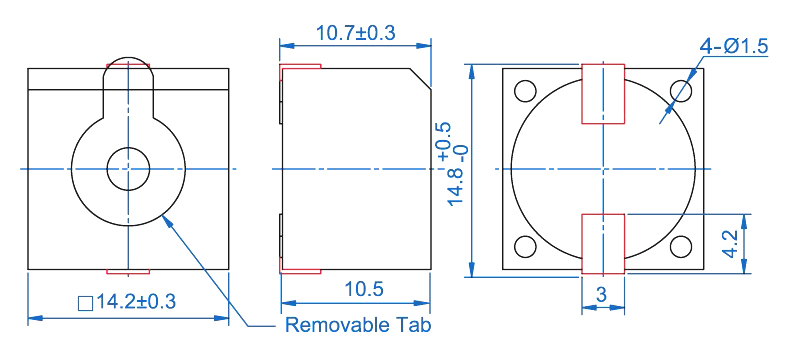

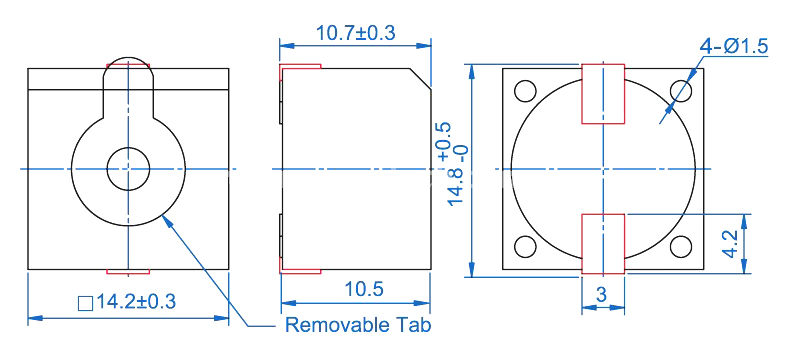

  • Diameter: 14mm*14mm*10mm
  • PDF
  • Description
  • Order

Product Description

14mm*14mm*10mm 10V 1410 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPT1410S-HS-10-4.3-14-R
Rated Voltage (Vp-p)10
Max Input Voltage (Vp-p)20
Rated Current (mA)≤10
Resonance Frequency (Hz)4300±500
Capacitance at 120Hz (pF)14000±30%

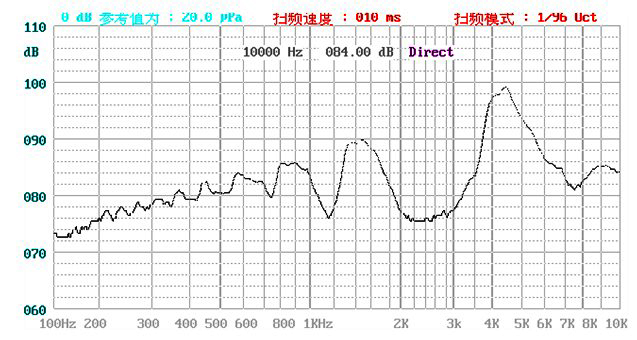

Sound Output at 10cm (dB)≥90
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)2.3
Housing MaterialPPS
RoHSYes

3
