SMD Piezo Transducer

SMD Piezo buzzer EPT2270AS-HS-12-4.0-19-R 22mm transducer

  • 22mm*7mm 12V 2270 2207 SMD passive piezo transducer & buzzer round buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model No.EPT2

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT2270AS-HS-12-4.0-19-R

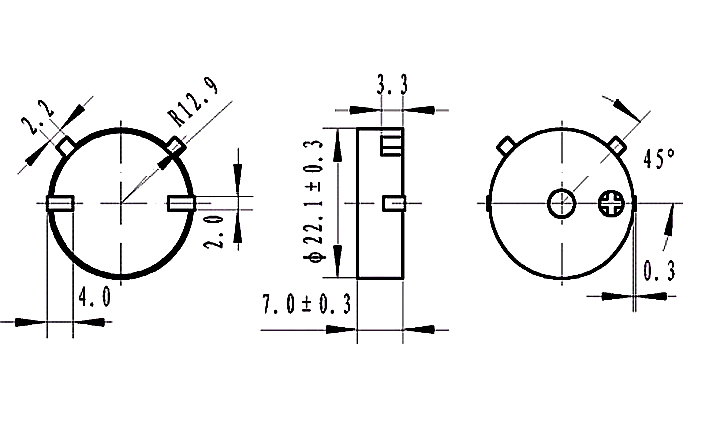

  • Diameter: 22mm*7mm
  • Description
  • Order

Product Description

22mm*7mm 12V 2270 2207  SMD passive piezo transducer & buzzer round buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


未标题-2 拷贝

Model No.EPT2270AS-HS-12-4.0-19-R
Rated Voltage (Vp-p)12
Operating Voltage (Vp-p)1～30
Rated Current (mA)≤10

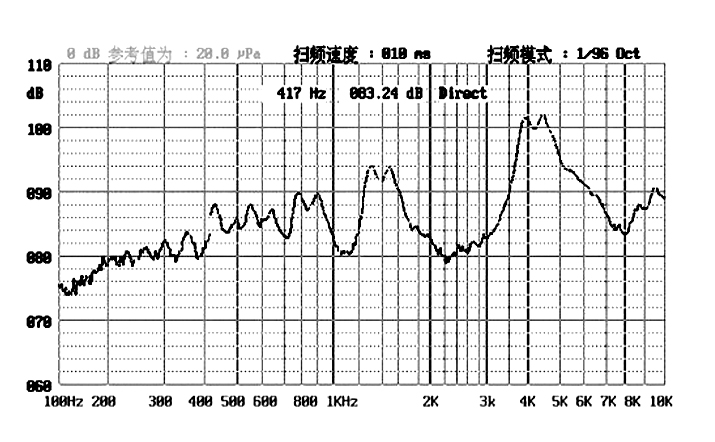

Resonance Frequency (KHz)4.0±0.5
Capacitance at 120Hz (pF)19000±30%
Sound Output at 10cm (dB)≥95
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+75
Weight (g)2.8
Housing MaterialPPS
RoHSYes

未标题-1 拷贝
