SMD Piezo Transducer

SMD Piezo buzzer EPT1750S-HS-05-4.0-15-R supplier

  • 17mm*17mm*5mm 5V 1750 1705 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model NumberEPT17

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1750S-HS-05-4.0-15-R

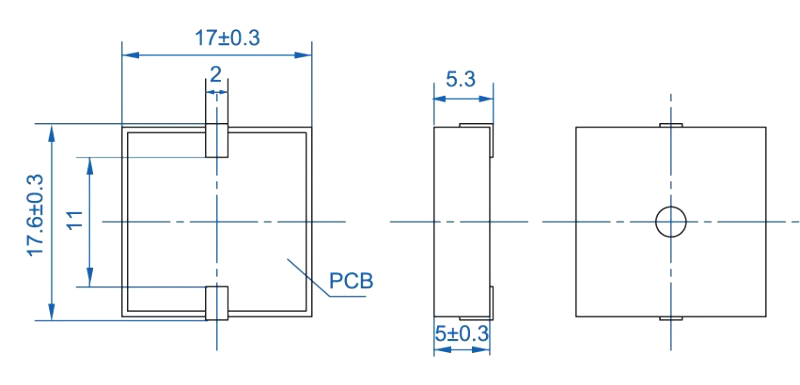

  • Diameter: 17mm*17mm*5mm
  • PDF
  • Description
  • Order

Product Description

17mm*17mm*5mm 5V 1750 1705 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model NumberEPT1750S-HS-05-4.0-15-R
Rated   Voltage (Vp-p)5
Operating   Voltage (Vp-p)1～20
*Current   Consumption (mA)≤2.5
Capacitance   at100Hz (PF)15000±30%

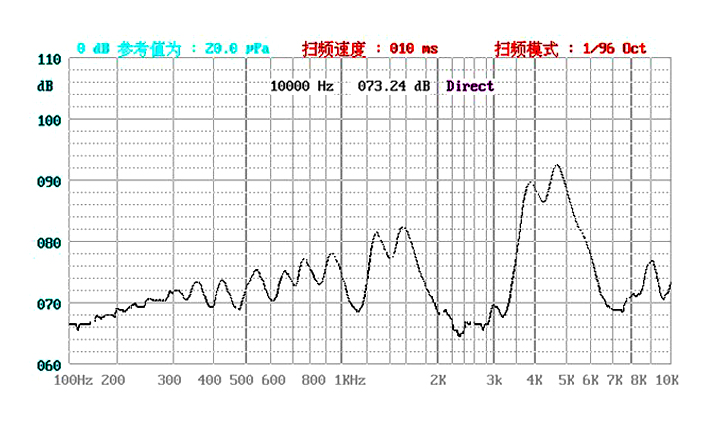

*Sound   Output at 10cm (dB)≥80
Resonant   Frequency (Hz)4000±500
Operating   Temperature (℃)-20～+70
Storage   Temperature (℃)-30～+80
Weight   (g)2
Housing   MaterialPPS
RoHSYes
