SMD Piezo Transducer

SMD Piezo buzzer EPT1628S-HL-05-4.0-16-R 16mm transducer

  • 16mm*16mm*2.8mm 5V 1628 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1628S-HL

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1628S-HL-05-4.0-16-R

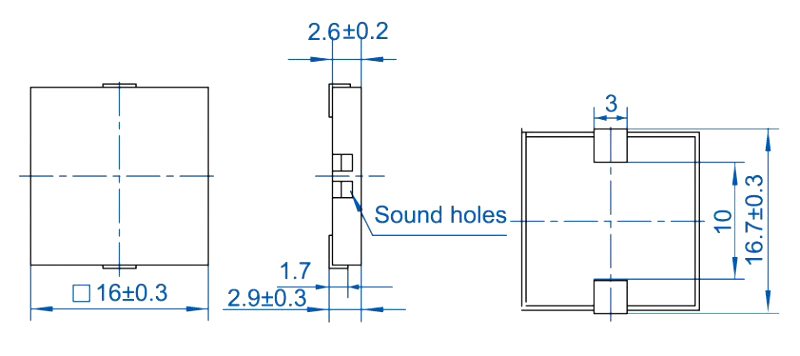

  • Diameter: 16mm*16mm*2.8mm
  • PDF
  • Description
  • Order

Product Description

16mm*16mm*2.8mm 5V 1628 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPT1628S-HL-05-4.0-16-R
Rated Voltage (Vp-p)5
Max Input Voltage (Vp-p)25
*Rated Current (mA)≤5
Resonance Frequency (KHz)4.0±0.5
Capacitance at 120Hz (pF)16000±30%
*Sound Output at 10cm (dB)≥75
Operating Temperature (℃)-30～+80
Storage Temperature (℃)-40～+80
Weight (g)1.2
Housing MaterialPPS
RoHSYes
