SMD Piezo Transducer

SMD Piezo buzzer EPT1227S-HL-03-4.0-16-R SMD transducer

  • 12mm*12mm*2.7mm 3V 1227 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1227S-HL

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1227S-HL-03-4.0-16-R
  • Diameter: 12mm*12mm*2.7mm
  • PDF
  • Description
  • Order

Product Description

12mm*12mm*2.7mm 3V 1227 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EPT1227S-HL-03-4.0-16-R
Rated Voltage (Vp-p)3
Max Input Voltage (Vp-p)25
Rated Current (mA)≤5
Resonance Frequency (KHz)4.0±0.5
Capacitance at 120Hz (pF)16000±30%

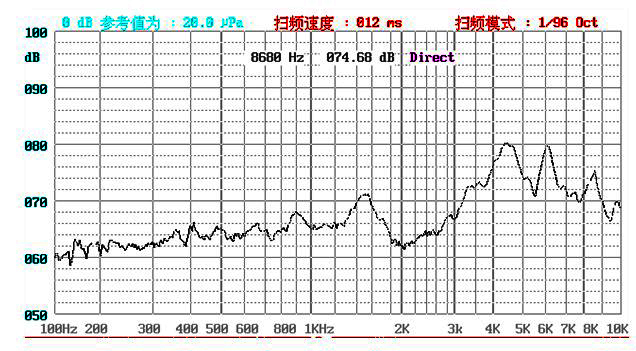

Sound Output at 10cm (dB)≥75
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.3
Housing MaterialLCP
RoHSYes

3
