SMD Piezo Transducer

SMD Piezo buzzer EPT1225S-HS-05-4.1-13-R 12mm buzzer

  • 12mm*12mm*2.5mm 5V 1225 SMD passive piezo transducer & buzzer square buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.Model No.EPT1225S-HS

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPT1225S-HS-05-4.1-13-R

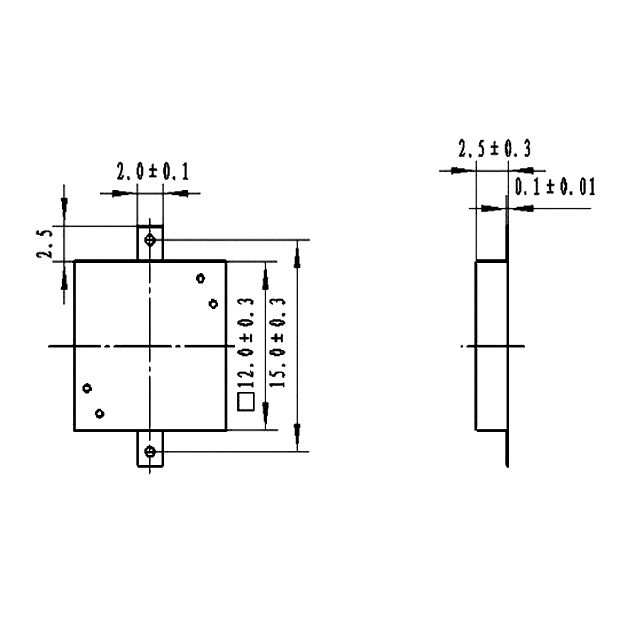

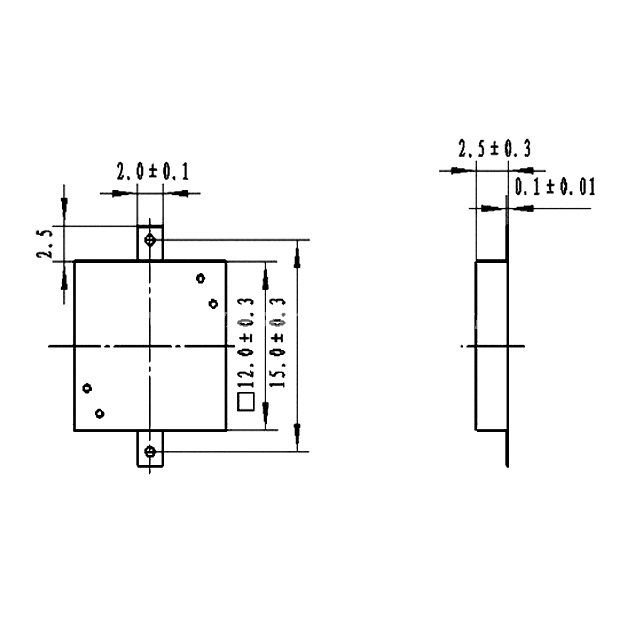

  • Diameter: 12mm*12mm*2.5mm
  • PDF
  • Description
  • Order

Product Description

12mm*12mm*2.5mm 5V 1225 SMD passive piezo transducer & buzzer square buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


未标题-1 拷贝

Model No.EPT1225S-HS-05-4.1-13-R
Rated Voltage (Vp-p)5
Max Input Voltage (Vp-p)1~25
Rated Current (mA)≤5
Resonance Frequency (Hz)4100±500
Capacitance at 120Hz (pF)15000±30%

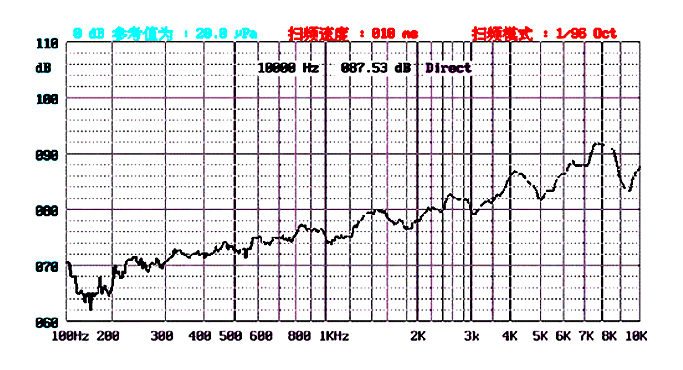

Sound Output at 10cm (dB)≥75
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.5
Housing MaterialLCP
RoHSYes

未标题-3 拷贝
