Mechanical Buzzer

SMD Piezo buzzer EPB1580S 12VDC

  • 15mm*8mm 12V 1580 1508 SMD passive piezo transducer & buzzer round buzzer buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Model No.EPB1

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EPB1580S-HS-12-4.5-R
  • Diameter: 15mm*8mm
  • PDF
  • Description
  • Order

Product Description

15mm*8mm 12V 1580 1508  SMD passive piezo transducer & buzzer round buzzer buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

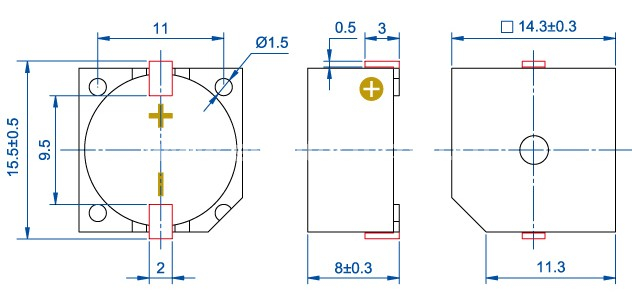

2

Model No.EPB1580S-HS-12-4.5-R
Rated Voltage (VDC)12
Max Input Voltage (VDC)1~30
Rated Current (mA)≤12
Resonance Frequency (Hz)4500±500
Capacitance at 120Hz (pF)12000±30%
Sound Output at 10cm (dB)≥90
Operating Temperature (℃)-40～+85
Storage Temperature (℃)-40～+90
Weight (g)2.3
Housing MaterialPPS
RoHSYes

3
