SMD Elec-Magnet Transducer

SMD magnetic transducer EET8530AS-03L-4.0-12-R High-Output Alarm buzzer

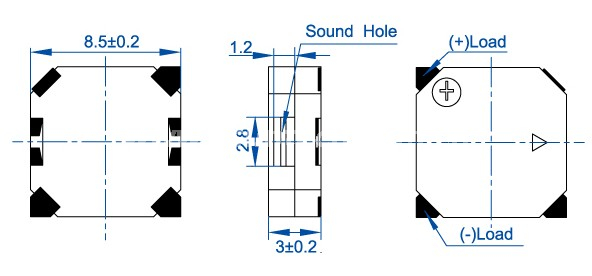

  • 8mmx8mmx3mm 3V 4000hz 8025 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd. Mod

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

8mmx8mmx3mm 3V  4000hz 8025  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EET8530AS-03L-4.0-12-R
Rated Voltage (V)3
Max Input Voltage (V)2~5
Rated Current (mA)≤100
Resonance Frequency (Hz)4000
Coil Resistance (Ω)12±2
Sound Output at 10cm (dB)≥78
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.5
Housing MaterialLCP
RohsYes

3
