SMD Elec-Magnet Transducer

SMD magnetic transducer buzzer EET8025S High-Output Alarm Annunciator

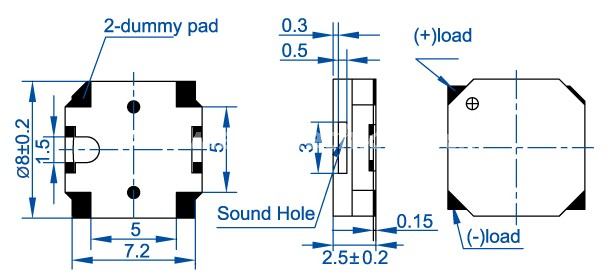

  • 8mmx8mmx2.5mm 3.6V 2700hz 8025 SMD passive electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

8mmx8mmx2.5mm 3.6V  2700hz 8025  SMD passive electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


2

Model No.EET8025S-3.6L-2.7-16-R
Rated Voltage (V)3
Max Input Voltage (V)2~5
Rated Current (mA)≤80
Resonance Frequency (Hz)4000
Capacitance at 120Hz (pF)12000±30%
Sound Output at 10cm (dB)≥85
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)0.5
Housing MaterialLCP
RohsYes

3
