SMD Elec-Magnet Buzzer

SMD magnetic buzzer EEB9650S-05L-2.7-R 5V samll active buzzer

  • 10mmx10mmx5mm 5V 2700hz 9650 9605 SMD active electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL:
  • PDF
  • Description
  • Order

Product Description

10mmx10mmx5mm 5V  2700hz 9650 9605 SMD active electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.



Model No.EEB9650S-05L-2.7-R
Rated Voltage (V)5
Operating Voltage (V)4~7
*Current Consumption (mA)≤30
*Sound Output at 10cm (dB)≥83
Resonance Frequency (Hz)2700±300
ToneSingle

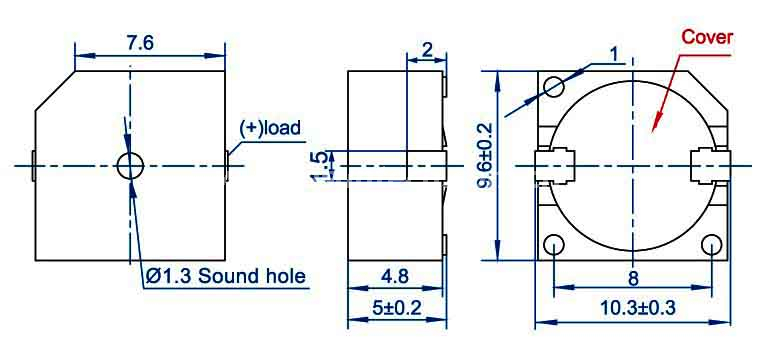

Dimension(mm)9.6x 9.6x H5.0
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)1.5
Housing MaterialLCP
RohsYes

5v
