SMD Elec-Magnet Buzzer

SMD magnetic buzzer EEB1310ES-05S-2.3-LAB-R self drive High-Output active buzzer

  • 13mmx13mmx10mm 5V 2300hz 1310 1301 SMD active electromagnetic transducer & buzzer square buzzer high quality alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.

  • Availability: Available
  • Brand: Esuntech
  • MODEL: EEB1310ES-05S-2.3-LAB-R

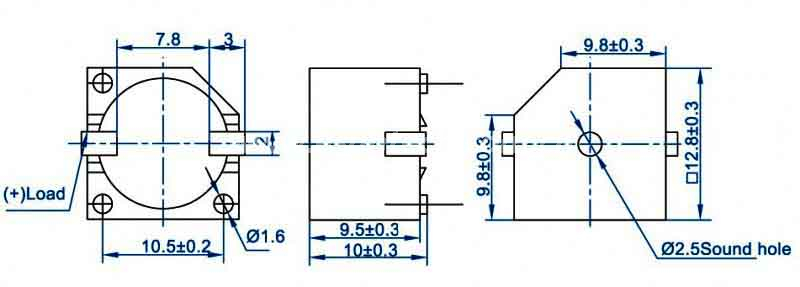

  • Diameter: 13mmx13mmx10mm
  • PDF
  • Description
  • Order

Product Description

13mmx13mmx10mm 5V  2300hz 1310 1301  SMD active electromagnetic transducer & buzzer square  buzzer high quality  alarm buzzer,alarm for household electrical appliances - Changzhou Esuntech Co Ltd.


Model No.EEB1310ES-05S-2.3-LAB-R
Rated Voltage (V)5
Max Input Voltage (V)3~8

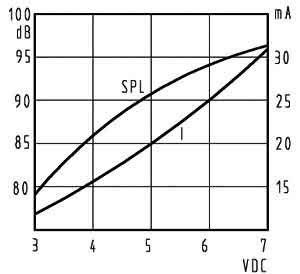

Resonant Frequency (Hz)2300±300
*Current Consumption (mA)≤30
*Sound Output at 10cm (dB)≥90
Operating Temperature (℃)-20～+70
Storage Temperature (℃)-30～+80
Weight (g)3
Housing MaterialPPS
RohsYes
